Ampertangid AC 5A

Name: [FLUKE I5S] Ampertangid AC 5A
SKU: EE-100-157-288
Price: 850.0 EUR
Availability: InStock

Fluke i5S vahelduvvooluklamber

Laiendage oma Fluke 430 seeria toite kvaliteedi tööriista või ScopeMeteri testimisvahendi kasutusvõimalusi selle 5 A vahelduvvoolu klambriga, mis on spetsiaalselt konfigureeritud, et tagada hea täpsus madalatel tasemetel, nt sekundaarvoolutrafode mõõtmisel.

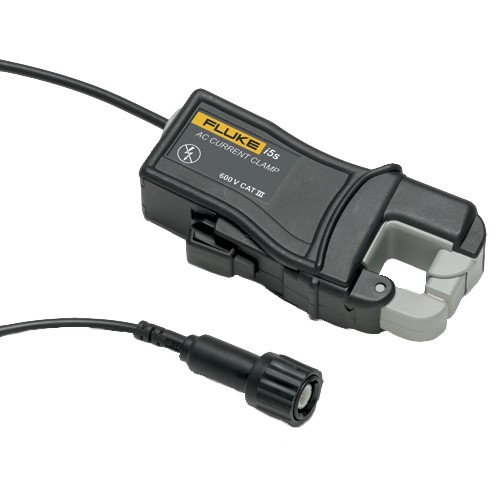

Fluke i5S AC Current Clamp

Specifications

Nominal current range5 A

Continuous current range10 mA to 6 A

Maximum Non-Destructive Current70 A

Lowest measurable current10 mA

Basic Accuracy48 Hz to 65 Hz

10 mA to 1 A1% + 5 mA

1 A to 5 A1%

Useable frequency40 Hz to 5 kHz

Output level(s)400 mV/A

Input Load Impedance> 1 MΩ in parallel with up to 47 pF

Crest Factor≤ 3, add 0.7% to accuracy

Safety Specifications

SafetyCAT III 600 V per IEC/EN61010-1, Pollution Degree 2

Maximum voltage600 V AC

Mechanical and General Specifications

Warranty1 year

Maximum conductor diameter15 mm

Output cable length2.5 m

BNC AdapterYes

BNC to banana adapter includedNo

850,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: FLUKE I5S
Tootekood: EE-100-157-288

Spetsifikatsioon

Weight

0.15 kg
