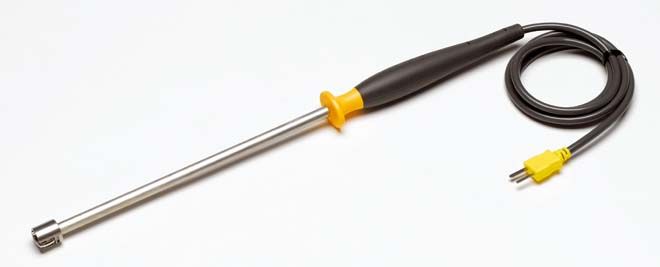

Fluke 80PK-27
Omadused
Vastupidav lintandur
SureGrip™ disain
Ühildub
Fluke 52 II kahe sondiga digitaalne termomeeter
53 II temperatuuri registreeriv digitaalne termomeeter
54 II B andmesalvestav termomeeter kahe sisendiga
Fluke 179 IMSK Tööstuslik multimeetri hoolduskomplekt
Fluke 233 Kaugnäidikuga digitaalne multimeeter
Fluke 27 II vastupidav digitaalne multimeeter
Fluke 83V Keskmise reageerimisega tööstuslik multimeeter
Fluke 28 II Ex isekindlad digitaalsed elektromagnetilised mittetuletugevusmõõturid (True RMS)
572-2 Kõrge temperatuuriga infrapunatermomeeter
568 Ex Isoleerumisohutu miniinfrapunatermomeeter
Fluke 80PK-27 Specifications
Measurement Range196.6 to 1112°F (-127 to 600°C)
Junction Accuracy-196.6 to 32°F ± 7.92°F (-127 to 0°C ±4.4°C )
32 to 361°F ±4.86°F (0 to 183°C ±2.2°C)
361°F to 1112°F ± <1.2 % of reading in°F (183°C to 600°C ±1.2 % of reading in°C)
Output77°F (25°C) = 1.00 mV (Reference junction at 0°C)
Seebeck Coefficient77°F (25°C) = 40.50 µV/°C
Measurement Time (Time Constant)1 time constant equals 330 ms; 5 time constants equal final reading
Maximum Voltage Rating at Probe Tip24 V AC rms, or 60 V DC
Probe TipMaximum Temperature: 1112°F (600°C)
Material: 303 stainless steel
Sheath Material303 stainless steel
Cable Length40" (1 m)
Cable IsulationMaterial: PVC
Maximum Temperature: 220°F (105°C)
Minimum Temperature: -20°F (-6.67°C)
ConductorsType: K
Size: AWG #24 stranded (7 strands of #32)
Length: 4' (1.2 m) nominal
HandleMaterial: Hytrel
Maximum Temperature: 150°F (65.6°C)
Minimum Temperature: -40°F (-40°C)
ConnectorType: yellow mini-thermocouple connector with 0.312" (0.792 mm) pin spacing
Material: Hytrel
Maximum Temperature: 275°F (125°C)
Dimensions0.9 x 12.75" (22.9 x 322.6 mm)
