Fluke 750P seeria rõhumoodulid
Fluke Premium Care kõlblik
Kui te investeerite Fluke'i testimisvahenditesse, siis soovite, et teie raha läheks võimalikult kaugele. Fluke Premium Care on tasuline pakkumine, mis pakub katvust, mis ületab toote originaalgarantii, nii et te ei pea muretsema ootamatute seisakute pärast, mis on tingitud kahjustatud katseseadmetest, tarvikutest või kalibreerimist või remonti vajavatest tööriistadest.
Fluke 750P seeria rõhumoodulid muudavad teie Fluke'i multifunktsionaalse kalibraatori täieõiguslikuks rõhu kalibraatoriks. Need paindlikud moodulid ei tööta mitte ainult multifunktsionaalsete kalibraatoritega, nagu 725, 726 või 750 seeria kalibraatorid, vaid laiendavad ka Fluke'i rõhukaliibraatorite mõõteulatust. Kuna rõhumoodulid kalibreeritakse sõltumatult, saab neid vahetada ühest kalibraatorist teise ilma täpsuse või jälgitavuse kaotamiseta.
Rõhu mõõtmine Fluke 750P seeria rõhumoodulitega on sama lihtne kui mooduli ühendamine rõhuallika või käsipumbaga, rõhumooduli kaabli ühendamine kalibraatoriga ja seejärel rõhu rakendamine rõhuallikast. Nupuvajutusega kuvatakse mõõdetud rõhk digitaalselt kalibraatoril kuni 11 erinevas tehnilises ühikus, mis annab teile kiiresti vajalikud andmed. Ja tänu "ilma tööriistadeta" ühendustele ei pea te ühenduste tegemiseks isegi mutrivõtme järele haarama.
Kasutades koos seeria 750 dokumenteerivate protsessikalibraatoritega, saab rõhuläbimõõdud isegi kuupäeva/kellaajaga templida ja salvestada dokumenteeritud kalibreerimisprotokollidesse, et neid hiljem uuesti välja otsida. See säästab aega, välistab vead ning toetab kvaliteedistandardite ja -eeskirjade järgimist.
Täielik rõhumoodulite perekond
Rohkem kui 50 rõhumooduliga, mis katavad rõhu kalibreerimise ja mõõtmise töökoormuse vahemikus 1 inH20 kuni 10 000 psi (2,5 mBar kuni 690 bar), on teie konkreetse rakenduse vajadustele vastava mudeli leidmine lihtsam kui kunagi varem. Kõik moodulid sisaldavad NPT, meetrilisi (BSP) ja M20 adaptereid.
Valige järgmiste valikute vahel:
Diferentsiaalmoodulid
Mõõtemoodulid
Kõrgsurvemoodulid
Absoluutsed moodulid
Vaakum moodulid
Kahe vahemiku moodulid
Referentsmoodulid
Isekindlad moodulid
Valikus on üle 50 rõhumooduli, millest mõned populaarsemad on järgmised:

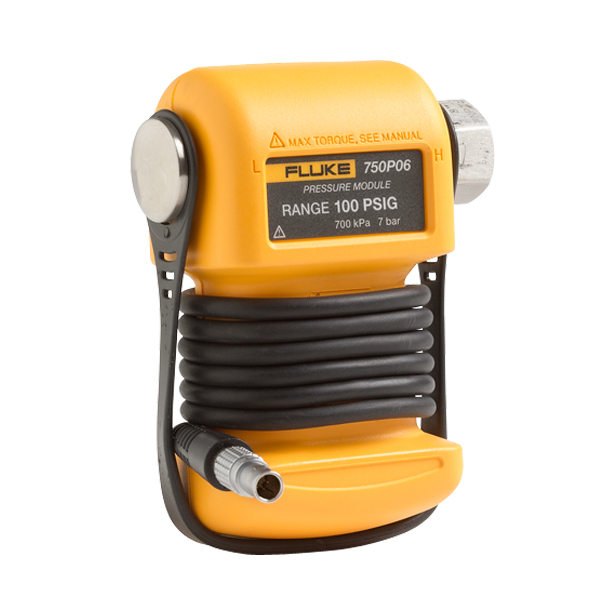

Fluke 750P00
Fluke 750P02
Fluke 750PD2
Fluke 750P03
Fluke 750P05
Fluke 750P06
Fluke 750P29
Survemoodulite täieliku loetelu saamiseks klõpsake ülaloleval vahekaardil Mudelid.
Mõeldud sinna, kus te töötate
Surveseadmeid paigaldatakse sageli karmidesse, raskesti ligipääsetavatesse kohtadesse, seega on vaja katseseadmeid, mis tulevad toime karmi kasutusega. 750P-seeria rõhumoodulitel on vastupidav kaitsekate, mis kaitseb moodulit löökide eest ning tihendab mustuse ja tolmu eest, kui te need kogemata maha kukutate, ei ole vaja muretseda. 750P-seeria moodulid on määratletud ka laias temperatuurivahemikus. Kuigi need moodulid on täpsemad kitsamas temperatuurivahemikus, kui neid kasutatakse siseruumides, on need moodulid projekteeritud ja määratletud jälgitavate rõhumõõtmiste teostamiseks keskkonnas -10 °C kuni +50 °C.
Fluke 750P Series Pressure Modules
Differential Module Specifications
ModelParameter / rangeBurst rating6Hi side media2Lo side media2
750P000 to 1 inH2O (0 to 2.5 mBar)30XDry airDry air
750P3IN0 to 3 Inch H2O (0 to 7.5 mbar)10XDry airDry air
750P5IN0 to 5 Inch H2O (0 to 12.5 mbar)6XDry airDry air
750P0170 to 10 inH2O (0 to 25 mBar)3XDry airDry air
750P020 to 1 psi (0 to 70 mBar)3XDry airDry air
750P220 to 1 psi (0 to 70 mBar)3X316 SSDry air
750P030 to 5 psi (0 to 350 mBar)3XDry airDry air
750P230 to 5 psi (0 to 350 mBar)4X316 SSDry air
750P040 to 15 psi (0 to 1 bar)3XDry airDry air
750P2470 to 15 psi (0 to 1 bar)4X316 SSDry air
ModelReference uncertainty4Total uncertainty
1-year
(15-35°C)Total uncertainty
1-year1Total uncertainty
6-month
(15-35°C)Total uncertainty
6-month1
750P00±0.15%±0.3%±0.35%±0.25%±0.30%
750P3IN±0.15%±0.3%±0.35%±0.25%±0.30%
750P5IN±0.15%±0.3%±0.35%±0.25%±0.30%
750P017±0.1%±0.2%±0.3%±0.15%±0.25%
750P02±0.050%±0.1%±0.15%±0.075%±0.125%
750P22±0.050%±0.1%±0.15%±0.075%±0.125%
750P03±0.02%±0.04%±0.05%±0.035%±0.04%
750P23±0.02%±0.04%±0.05%±0.035%±0.04%
750P04±0.0175%±0.035%±0.045%±0.03%±0.04%
750P247±0.0175%±0.035%±0.045%±0.03%±0.04%
Gage Module Specifications
ModelParameter / rangeBurst rating6Hi side media2Lo side media2
750P0570 to 30 psi (0 to 2 bar)4X316 SSN/A
750P0670 to 100 psi (0 to 7 bar)4X316 SSN/A
750P2770 to 300 psi (0 to 20 bar)4X316 SSN/A
750P070 to 500 psi (0 to 35 bar)4X316 SSN/A
750P080 to 1000 psi (0 to 70 bar)3X316 SSN/A
750P0970 to 1500 psi (0 to 100 bar)3X316 SSN/A
750P20000 to 2000 psi (0 to 140 bar)3X316 SSN/A
ModelReference uncertainty4Total uncertainty
1-year
(15-35°C)Total uncertainty
1-year1Total uncertainty
6-month
(15-35°C)Total uncertainty
6-month1
750P057±0.0175%±0.035%±0.045%±0.03%±0.04%
750P067±0.0175%±0.035%±0.045%±0.03%±0.04%
750P277±0.0175%±0.035%±0.045%±0.03%±0.04%
750P07±0.0175%±0.035%±0.045%±0.03%±0.04%
750P08±0.0175%±0.035%±0.045%±0.03%±0.04%
750P097±0.0175%±0.035%± 0.045%±0.03%±0.04%
750P2000±0.0175%±0.035%± 0.045%±0.03%±0.04%
High Pressure Module Specifications
ModelParameter / rangeBurst rating6Hi side media2Lo side media2
750P290 to 3000 psi (0 to 200 bar)3X316 SSN/A
750P300 to 5000 psi (0 to 340 bar)3X316 SSN/A
750P310 to 10000 psi (0 to 700 bar)2X316 SSN/A
ModelReference uncertainty4Total uncertainty
1-year
(15-35°C)Total uncertainty
1-year1Total uncertainty
6-month
(15-35°C)Total uncertainty
6-month1
750P29±0.0175%±0.035%±0.045%±0.03%±0.04%
750P30±0.0175%±0.035%±0.045%±0.03%±0.04%
750P31±0.0175%±0.035%±0.045%±0.03%±0.04%
Absolute Module Specifications
ModelParameter / rangeBurst rating6Hi side media2Lo side media2
750PA30 to 5 psia (0 to 350 mBar)4X316 SSN/A
750PA470 to 15 psia (0 to 1 bar)4X316 SSN/A
750PA50 to 30 psia (0 to 2 bar)4X316 SSN/A
750PA60 to 100 psia (0 to 7 bar)4X316 SSN/A
750PA270 to 300 psia (0 to 20 bar)4X316 SSN/A
750PA70 to 500 psia (0 to 35 bar)4X316 SSN/A
750PA80 to 1000 psia (0 to 70 bar)3X316 SSN/A
750PA90 to 1500 psia (0 to 100 bar)3X316 SSN/A
ModelReference uncertainty4Total uncertainty
1-year
(15-35°C)Total uncertainty
1-year1Total uncertainty
6-month
(15-35°C)Total uncertainty
6-month1
750PA3±0.03%±0.06%±0.07%±0.05%±0.06%
750PA47±0.03%±0.06%±0.07%±0.05%±0.06%
750PA5±0.03%±0.06%±0.07%±0.05%±0.06%
750PA6±0.03%±0.06%±0.07%±0.05%±0.06%
750PA27±0.03%±0.06%±0.07%±0.05%±0.06%
750PA7±0.03%±0.06%±0.07%±0.05%±0.06%
750PA8±0.03%±0.06%±0.07%±0.05%±0.06%
750PA9±0.03%±0.06%±0.07%±0.05%±0.06%
Vacuum Module Specifications
ModelParameter / rangeBurst rating6Hi side media2Lo side media2
750PV3-5 psi (-350 mBar)4X316 SSDry air
750PV4-15 psi (-1 bar)4X316 SSDry air
ModelReference uncertainty4Total uncertainty
1-year
(15-35°C)Total uncertainty
1-year1Total uncertainty
6-month
(15-35°C)Total uncertainty
6-month1
750PV3±0.03%±0.06%±0.07%±0.05%±0.06%
750PV4±0.03%±0.06%±0.07%±0.05%±0.06%
Dual Range Specifications
ModelParameter / rangeBurst rating6Hi side media2Lo side media2
750PD2-1 to 1 psi (-70 to 70 mBar)4X316 SSDry air
750PD3-5 to 5 psi (-350 to 350 mBar)4X316 SSDry air
750PD10-10 to 10 psi (-700 to 700 mBar)4X316 SSDry air
750PD4-15 to 15 psi (-1 to 1 bar)4X316 SSDry air
750PD5-15 to 30 psi (-1 to 2 bar)4X316 SS—
750PD50-15 to 50 psi (-1 to 3.5 bar)4X316 SS—
750PD6-15 to 100 psi (-1 to 7 bar)4X316 SS—
750PD7-15 to 200 psi (-1 to 14 bar)4X316 SS—
750PD27-15 to 300 psi (-1 to 20 bar)4X316 SS—
ModelReference uncertainty4Total uncertainty
1-year
(15-35°C)Total uncertainty
1-year1Total uncertainty
6-month
(15-35°C)Total uncertainty
6-month1
750PD2±0.05%±0.1%±0.15%±0.075%±0.125%
750PD3±0.03%±0.06%±0.07%±0.05%±0.06%
750PD10±0.025%±0.05%±0.07%±0.04%±0.06%
750PD4±0.0175%±0.035%±0.045%±0.03%± 0.04%
750PD5± 0.0175%± 0.035%± 0.045%±0.03%± 0.04%
750PD50± 0.0175%± 0.035%± 0.045%±0.03%± 0.04%
750PD6± 0.0175%± 0.035%± 0.045%±0.03%± 0.04%
750PD7± 0.0175%± 0.035%± 0.045%±0.03%± 0.04%
750PD27± 0.0175%± 0.035%± 0.045%±0.03%± 0.04%
Reference Module Specifications
ModelParameter / rangeBurst rating6Hi side media2Lo side media2
750R0450 to 15 psi (0 to 1 bar)3XDry airDry air
750R0650 to 100 psi (0 to 7 bar)4X316 SS—
750R270 to 300 psi (0 to 20 bar)4X316 SS—
750R070 to 500 psi (0 to 35 bar)4X316 SS—
750R0850 to 1000 psi (0 to 70 bar)3X316 SS—
750R290 to 3000 psi (0 to 200 bar)3X316 SS—
750R300 to 5000 psi (0 to 340 bar)3X316 SS—
750R3150 to 10000 psi (0 to 700 bar)2X316 SS—
750RD5-15 to 30 psi (-1 to 2 bar)4XDry air—
750RD65-12 to 100 psi (-0.8 to 7 bar)4X316 SS—
750RD27-12 to 300 psi (-0.8 to 20 bar)4X316 SS—
ModelReference uncertainty4Total uncertainty
1-year
(15-35°C)Total uncertainty
1-year1Total uncertainty
6-month
(15-35°C)Total uncertainty
6-month1
750R045±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R065±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R27±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R07±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R085±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R29±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R30±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R315±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750RD5±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750RD65±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750RD27±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
1. Total uncertainty, % of full span for temperature range 0°C to +50°C, one year interval. Total uncertainty, 1.0% of full span for temperature range -10°C to 0°C, one year interval. No 6 month specification available for range -10°C to 0°C.
2. “Non-corrosive gasses” indicates Dry air or non-corrosive gas as compatible media. “Stainless Steel 316-SS” indicates media compatible with Type 316 Stainless Steel.
3. Specifications % of Full Span unless otherwise noted.
4. Reference Uncertainty is the specification for as left data for 24 hours.
5. When reference class modules are used with fixed resolution products (717, 718, 719 series, 725 and 726) calibrators add ±1 count to the overall accuracy specification.
6. Burst rating specification refers to the multiplier times full scale of the module for the rated burst pressure.
7. Intrinsically Safe pressure module available in this pressure range.
