Fluke 117 multimeeter ja PRV240 kontrollseade komplekt

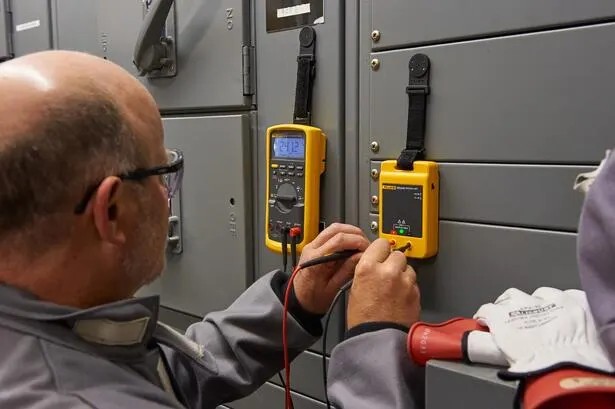

Fluke 117 multimeeter ja PRV240 kontrollseade komplekt ühendab endas üldotstarbelise elektriku digitaalse multimeetri ja kaasaskantava, taskusse mahtuva, patareitoitega pingegeneraatori, mis võimaldab ohutult kontrollida, kas teie elektriline testimisseade töötab korralikult, enne kui teete pingelisi teste.
Fluke 117 elektriku multimeeter
Fluke 117 elektrikute multimeeter sisaldab integreeritud kontaktivaba pinge tuvastamist, AutoVolt ja LoZ funktsioone kiiremate ja täpsemate näitude saamiseks. See on kompaktne tõeline RMS-mõõtur nõudlikele rakendustele, nagu ärihooned, haiglad ja koolid.
Fluke 117 peamised funktsioonid
Integreeritud VoltAlert™ tehnoloogia kiireks kontaktivabaks pinge tuvastamiseks. Sisaldab AutoVolt automaatset vahelduvvoolu/alalisvoolu pinge valikut
- Madal sisendtakistus, mis aitab vältida vale näitude tekkimist varjupinge tõttu
- Min/Max/Average funktsioon signaali kõikumiste registreerimiseks
- CAT III 600 V ohutusklass
PRV240 kontrollseade
Fluke PRV240 kontrollseade on kaasaskantav, taskusse mahtuv, patareitoitega pingegeneraator. See on ainulaadne, kuna genereerib stabiilset vahelduv- ja alalisvoolu nii LoZ- kui ka HiZ-seadmetele.
PRV240 kontrollseadme peamised funktsioonid
Üks LED näitab seadme töökorrasolekut, muutes selle seadme lihtsaks lahenduseks teie testseadme TBT-kontrolli nõuete täitmiseks. Pinge allikaks on süvistatud kontaktid, mis aktiveeruvad testproovide sisestamisel, vältides juhuslikku kontakti.
- Komplektis TPak™ magnetiline riputusrihm
- Pikk aku eluiga – 5000 testi nelja AA-aku komplektiga
Fluke 117 Multimeter and PRV240 Proving Unit Kit
Specifications
Maximum voltage between any terminal and earth ground600 V
SafetyIEC 61010-1: Pollution Degree 2
IEC 61010-2-033: CAT III 600V
Fuse for A input11 A, 1000 V FAST Fuse (Fluke PN 803293)
DisplayDigital: 6,000 counts, updates 4 per second
Bar graph33 segments, updates 32 per second
Operating temperature-10°C to +50°C
Storage temperature-40°C to +60°C
Battery type9 volt Alkaline, IEC 6LR61
Battery life400 hours typical, without backlight
Accuracy Specifications
DC millivoltsRange/resolution600.0 mV / 0.1 mV
Accuracy±([% of reading] + [counts]): 0.5% + 2
DC voltsRange/resolution6.000 V / 0.001 V
60.00 V / 0.01 V
600.00 V / 0.1 V
Accuracy±([% of reading] + [counts]): 0.5% + 2
Auto voltsRange/resolution600.0 V / 0.1 V
Accuracy2.0% + 3 (DC, 45 Hz to 500 Hz)
4.0% + 3 (500 Hz to 1 kHz)
AC millivolts¹ True RMSRange/resolution600.0 mV / 0.1 mV
Accuracy1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)
AC volts¹ True RMSRange/resolution6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
Accuracy1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)
ContinuityRange/resolution600 Ω / 1 Ω
AccuracyBeeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
OhmsRange/resolutionOhms Range/resolution 600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩ
Accuracy0.9% + 1
Range/resolution40.00 MΩ / 0.01 MΩ
Accuracy5% + 2
Diode testRange/resolution
Accuracy0.9% + 2
CapacitanceRange/resolution1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF / 1 μF
100 μF to 1000 μF
Accuracy1.9% + 2
Range/resolution> 1000 μF
Accuracy5% + 20%
Lo-Z capacitanceRange1 nF to 500 μF
Accuracy10% + 2 typical
AC amps True RMS (45 Hz to 500 Hz)Range/resolution6.000 A / 0.001 A
10.00 A / 0.01 A
Accuracy1.5% + 3
20 A continuous overload for 30 seconds max
DC ampsRange/resolution6.000 A / 0.001 A 10.00 A / 0.01 A
Accuracy1.0% + 3
20 A continuous overload for 30 seconds max
Hz (V or A input)²Range/resolution99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz
9.999 kHz / 0.001 Hz
50.00 kHz / 0.01 Hz
Accuracy0.1% + 2
1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.
2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
3. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.
4. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
Mechanical and General Specifications
Size167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight550 g
Warranty3 years
Fluke PRV240 Proving Unit
General Specifications
Output voltage240 V ac rms or dc± 10 % ≥ 1 MΩ
LoZ >3 kΩ load60 V ac typical
50 V ac rms minimum
LED power indicatorTurns on when output voltage is present
Battery4 AA Alkaline batteries NEDA24 A IEC LR03
Battery life5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load
Operating temperature-10 °C to +50 °C
Operating humidity0 % to 90 % (0 °C to 35 °C)
0 % to 70 % (35 °C to 55 °C)
Operating altitude2000 m
Dimensions11.7 cm x 7.4 cm x 2.8 cm (4.6 in x 2.9 in x 1.1 in), Pollution Degree 2
Weight0.23 kg (8 oz) includes batteries
SafetyIEC61010-1, IEC61010-2-030
WarrantyOne-year
Electromagnetic Compatibility (EMC)IEC 61326-1Portable EM environment; CISPR 11, Group 1, Class A
US (FCC)47 CFR 15 subpart B, this product is considered an exempt device per clause 15.103
Korea (KCC)Class A Equipment (Industrial Broadcasting & Communication Equipment)
This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
