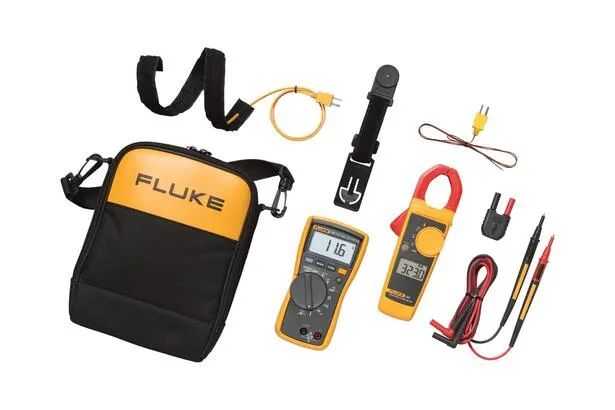

Fluke 116/323 HVAC Combo Kit – sisaldab multimeetrit ja klemmmeetrit
Õige tööriista olemasolu on hädavajalik. Veelgi parem on, kui kõik vajalikud tööriistad on käepärast just siis, kui neid vaja on. Fluke 116/323 HVAC Combo Kit pakub parimat mitmekülgset ja vastupidavat multimeetrit ning kiiret üldotstarbelist klemmmeetrit.
Fluke 116 on varustatud integreeritud DMM-temperatuurianduriga Fluke 80BK-A, mistõttu pole vaja kaasas kanda eraldi termomeetrit. Mikroamperfunktsioon võimaldab leegisensori mõõtmist kuni 0,1 mikroamperini. AutoV/LoZ funktsioon hoiab ära vale näitude tekkimise varjupinge tõttu. Fluke 116 on varustatud suure valge LED-taustavalgustusega, mis võimaldab töötada halvasti valgustatud kohtades. Seade mõõdab takistust, jätkuvust, sagedust ja mahtuvust ning näitab minimaalseid, maksimaalseid ja keskmisi näite koos kulunud ajaga, et registreerida signaali kõikumised.
Fluke 116 multimeetrid on sõltumatult testitud ohutuks kasutamiseks CAT III 600 V keskkondades.
Tõelised RMS-mõõtmised ja optimeeritud ergonoomika teevad Fluke 323 tõelise RMS-klemmi parimaks üldotstarbeliseks klemmi mõõturi jaoks kommerts- ja elamuehituse elektrikutele. Fluke 323 mudel sobib ideaalselt voolu mõõtmiseks kuni 400 A tihedates kaabelkambrites.
Koos annavad Fluke 116 HVAC multimeeter ja 323 tõeline RMS-klemmi elektrikutele õiged tööriistad töö tegemiseks.
Fluke 116/323 HVAC Combo Kit - Includes Multimeter and Clamp Meter
Fluke 116 HVAC Multimeter with Temperature and Microamps
Specifications
Maximum voltage between any terminal and earth ground600 V
Surge protection6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Display6,000 counts, updates 4 per second
Bar graph33 segments, updates 32 per second
Operating temperature-10°C to +50°C
Storage temperature-40°C to +60°C
Battery type9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery life400 hours typical, without backlight
Accuracy Specifications
DC millivoltsRange/Resolution600.0 mV / 0.1 mV
Accuracy±([% of reading] + [counts]): 0.5% + 2
DC voltsRange/Resolution6.000 V / 0.001 V
60.00 V / 0.01 V
600.00 V / 0.1 V
Accuracy±([% of reading] + [counts]): 0.5% + 2
Auto voltsRange/Resolution600.0 V / 0.1 V
Accuracy2.0% + 3 (DC, 45 Hz to 500 Hz)
4.0% + 3 (500 Hz to 1 kHz)
AC millivolts¹ True RMSRange/Resolution600.0 mV / 0.1 mV
Accuracy1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)
AC volts¹ True RMSRange/Resolution6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
Accuracy1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)
ContinuityRange/Resolution600 Ω / 1 Ω
AccuracyBeeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer.
OhmsRange/Resolution600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩ
Accuracy0.9% + 1
Range/Resolution40.00 MΩ / 0.01 MΩ
Accuracy1.5% + 2
Diode testRange/Resolution2.000 V / 0.001 V
Accuracy0.9% + 2
CapacitanceRange/Resolution1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF / 1 μF
100 μF to 1000 μF
Accuracy1.9% + 2
Range/Resolution> 1000 μF
Accuracy5% + 20%
LoZ capacitanceRange1 nF to 500 μF
Accuracy10% + 2 typical
Temperature² (Type-K thermocouple)Range/Resolution-40°C to 400°C / 0.1°C
Accuracy1% + 10²
Range/Resolution-40°F to 752°F / 0.2°F
Accuracy1% + 18²
AC μamps True RMS (45 Hz to 500 Hz)Range/Resolution600.0 μA / 0.1 μA
Accuracy1.0% + 2
DC μampsRange/Resolution600.0 μA / 0.1 μA
Accuracy1.0% + 2
Hz (V or A input)²Range/Resolution99.99 Hz / 0.01 Hz
999.99 Hz / 0.1 Hz
9.999 Hz / 0.001 Hz
50.00 Hz / 0.01 Hz
Accuracy0.1% + 2
1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.
2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
• Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.
• Temperature Range/Resolution: -40°F to 752°F / 0.2°F
Mechanical and General Specifications
Size167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight550 g
Warranty3 years
Fluke 323 True-rms Clamp Meter
Specifications
AC currentRange400.0 A
Accuracy2% ±5 digits
(45 Hz to 65 Hz)
2.5% ±5 digits
(65 Hz to 400 Hz)
AC voltageRange600.0 V
Accuracy1.5% ±5 digits
DC voltageRange600.0 V
Accuracy1.0% ±5 digits
ResistanceRange/Resolution400.0 Ω/ 4000 Ω
Accuracy1.0% ±5 digits
Continuity≤ 70 Ω
AC responseTrue-rms
Data holdYes
SizeH x W x D (mm)207 x 75 x 34
Max wire diameter30 mm (600 MCM)
Weight265 g
Category ratingCAT III 600 V
CAT IV 300 V
WarrantyTwo-year
