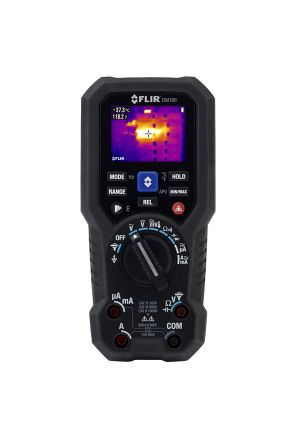

Multimeeter TrueRMS, VFD, Termokaamera 80x60

OVERVIEW

IR Resolution

60 × 80 pixels (4,800 pixels)

Warranty

10 yrs on product and detector

ENVIRONMENTAL

Drop test

3 m

IP Rating

IP40

IMAGING & OPTICAL

Focus

Fixed

Thermal image palettes

Rainbow, iron, gray scale

MEASUREMENT & ANALYSIS

AC/DC mAmps

Range: 600.0 mA Basic Accuracy: ±1.0% / ±0.7%

AC/DC microAmps

Range: 4000 µA Basic Accuracy: ±1.5%

AC/DC mVolt

Range: 600.0 mV Basic Accuracy: ±1% / ±0.5%

AC/DC Voltage

Range: 600.0 V Basic Accuracy: ±0.7% / ±0.5%

Capacitance

Range: Basic Accuracy: 200.0 nF ±1.5% 200.0 µF ±1.5% 2.000 mF ±2.0% 10.00 mF ±5.0%

Diode Test

Range: 3.000 V Basic Accuracy: ±0.9%

Frequency Range

Range: 99.99 kHz Basic Accuracy: ±1.0%

Resistance

Range: Basic Accuracy: 600.0 Ω ±0.3% 600.0 kΩ ±0.5% 6.000 MΩ ±0.9% 60.00 MΩ ±1.5%

Temperature Range

–10 to 150°C (14 to 302°F)

Thermocouple

–40 to 752.0°F DMM ± (1.0% + 3°F), –40 to 400°C DMM ± (1.0% + 1.5°C)

VFD AC Voltage

Range: 600.0 V RMS Basic Accuracy: ±1.0%

AC/DC Amps

Range: 10.00 A Basic Accuracy: ±1.0% / ±0.7%

Continuity check

Between 30 Ω and 480 Ω

True RMS

Yes

METER DATA

Auto Power Off

Yes

POWER

Battery

3 AA batteries; optional TA04 Li-Poly rechargeable battery
