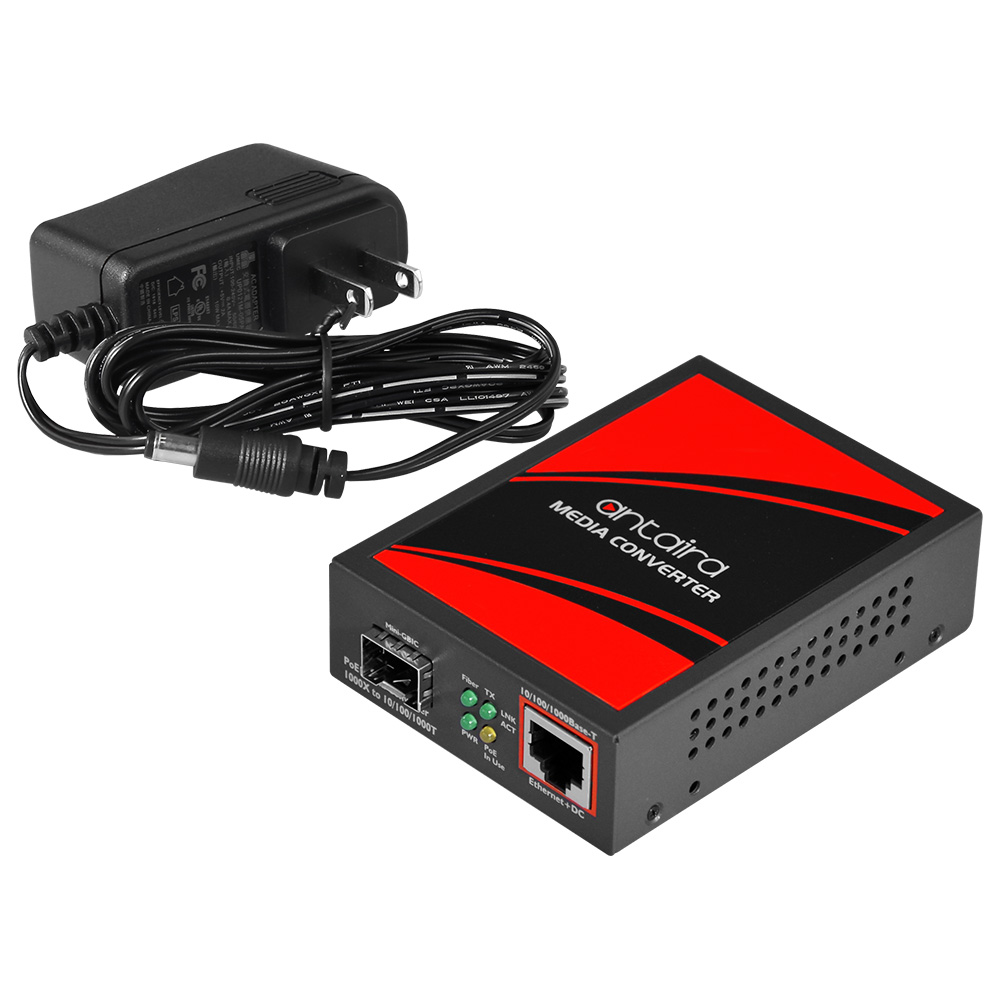

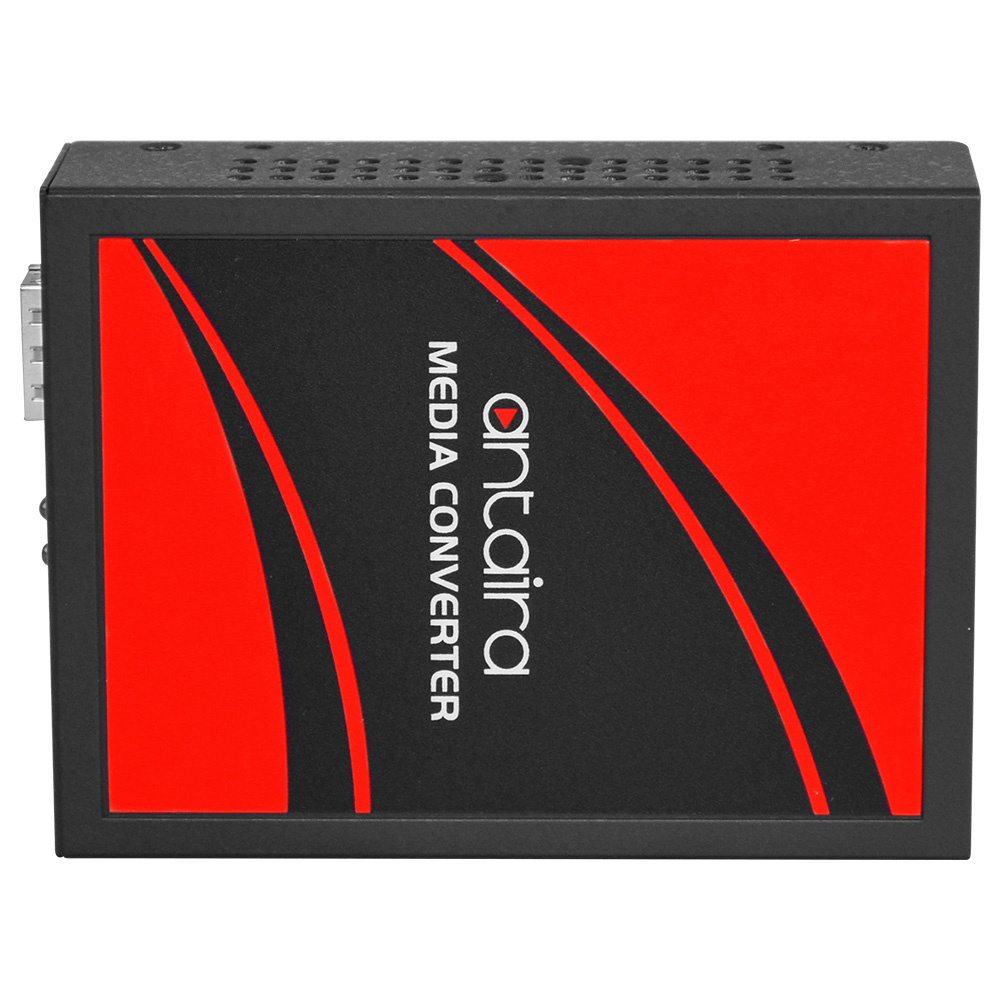

Tööstuslik konverter: PoE+ 10/100/1000T(X) to 10/100/1000 SFP

Tööstuslik konverter: PoE+ 10/100/1000T(X) to 10/100/1000 SFP

Approvals	FCC Class A, CE Class A
Connector	LC
Dimensions	98 x 70 x 26 mm
Dip Switch	LFP Function (Disable/Enable) Setting
Ethernet	1 x RJ45 Interface
Fiber	1 x SFP Slot
Humidity	5% ~ 90% non-condensing
IEEE	IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.z 1000BaseX
LED	Power, TP Link/ACT, Fiber Link/ACT, PoE
Link Budget	*See SFP Specifications
Max Tx Power	*See SFP Specifications
Min Tx Power	*See SFP Specifications
Operating Temperature	0° ~ 50° C (32° ~ 122° F)
Poe Pin Assignment	1/2(+), 3/6(-)
Power	52V DC, 0.58A External AC-to-DC Adapter
Power Output	Max. 30 Watts
Sensitivity	*See SFP Specifications
Storage Temperature	-10° ~ 70° C
Typical Distance	*See SFP Specifications
Warranty	2 Years
Wave length	*See SFP Specifications
Weight	200g

165,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

datasheet.pdf

Manufacturer Part Number: FCU-2805P-SFP
Tootekood: EE-100-169-748

Spetsifikatsioon

Weight

0.2 kg
