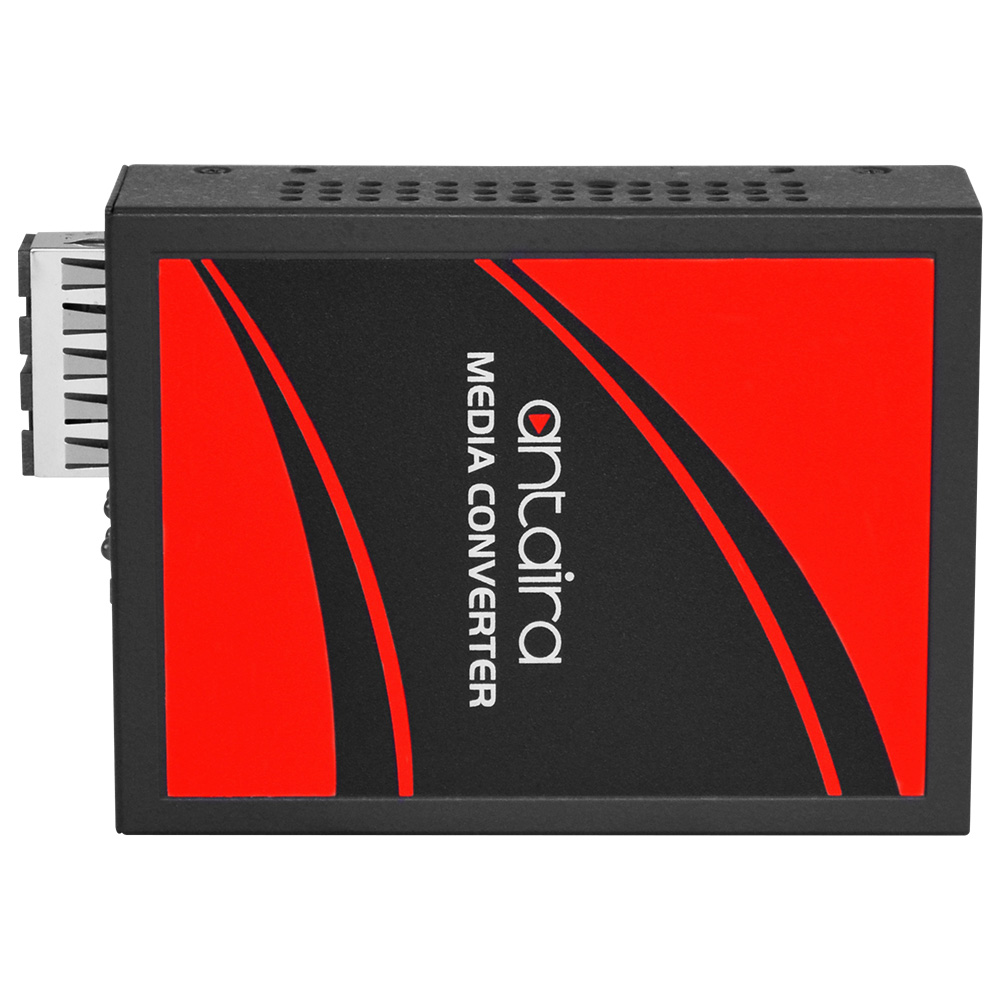

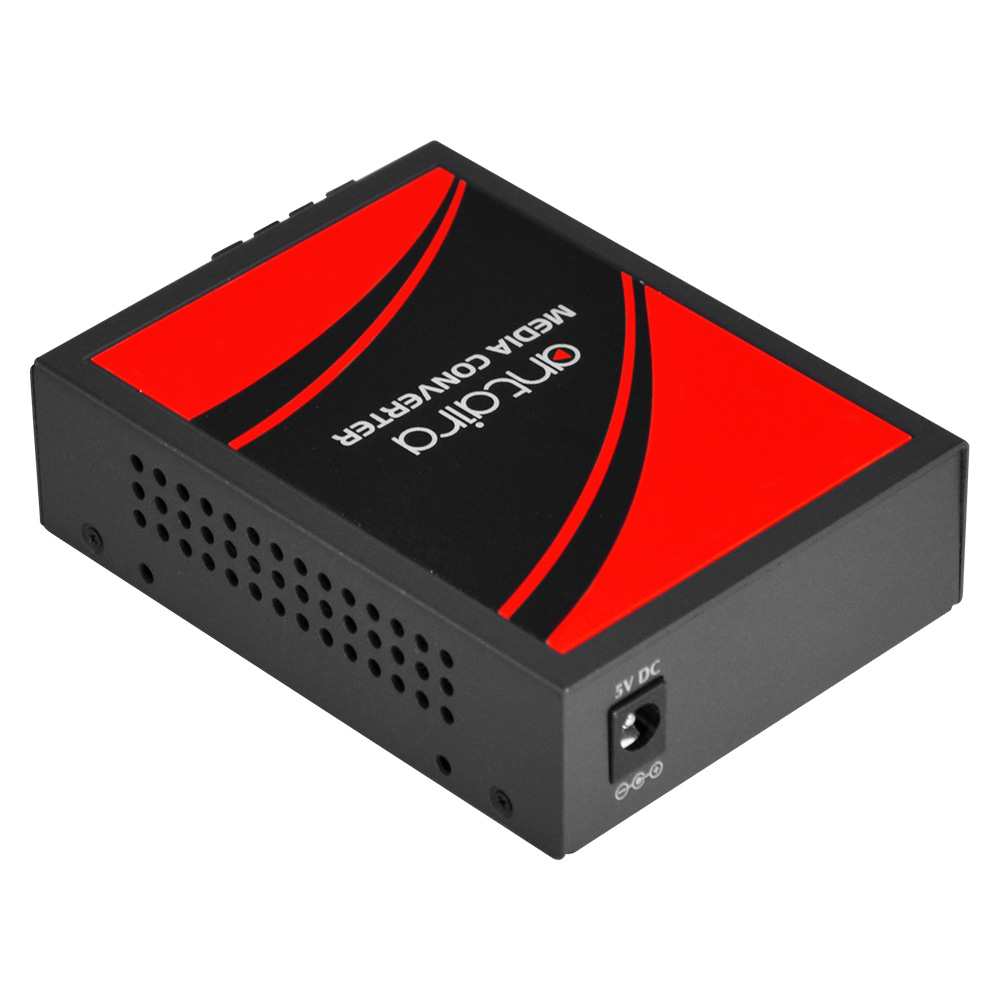

Tööstuslik konverter: 10/100/1000T(X) to 1000FX SC MM

Approvals	FCC Class A, CE Class A
Connector	SC (Multi-Mode)
Dimensions	97 x 70 x 26 mm
Dip Switch	LFP Function (Disable/Enable) Setting
Ethernet	1 x RJ45 Interface
Fiber	1 x SC Duplex Interface
Humidity	5% ~ 90% non-condensing
IEEE	IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.z 1000BaseX
LED	Power, TP Link/ACT, Fiber Link/ACT
Operating Temperature	0° ~ 50° C (32° ~ 122° F)
Power	5V DC, 2A
Power Consumption	5 Watts Max. / 17BTU/hr Max
Storage Temperature	-10° ~ 70° C
Typical Distance	220 ~ 550 m
Warranty	2 Years
Wave length	850 nm
Weight	200 g

115,00 € (ilma km-ta)

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

datasheet.pdf

Manufacturer Part Number: FCU-2802SC
Tootekood: EE-100-169-746

Weight

0.2 kg
