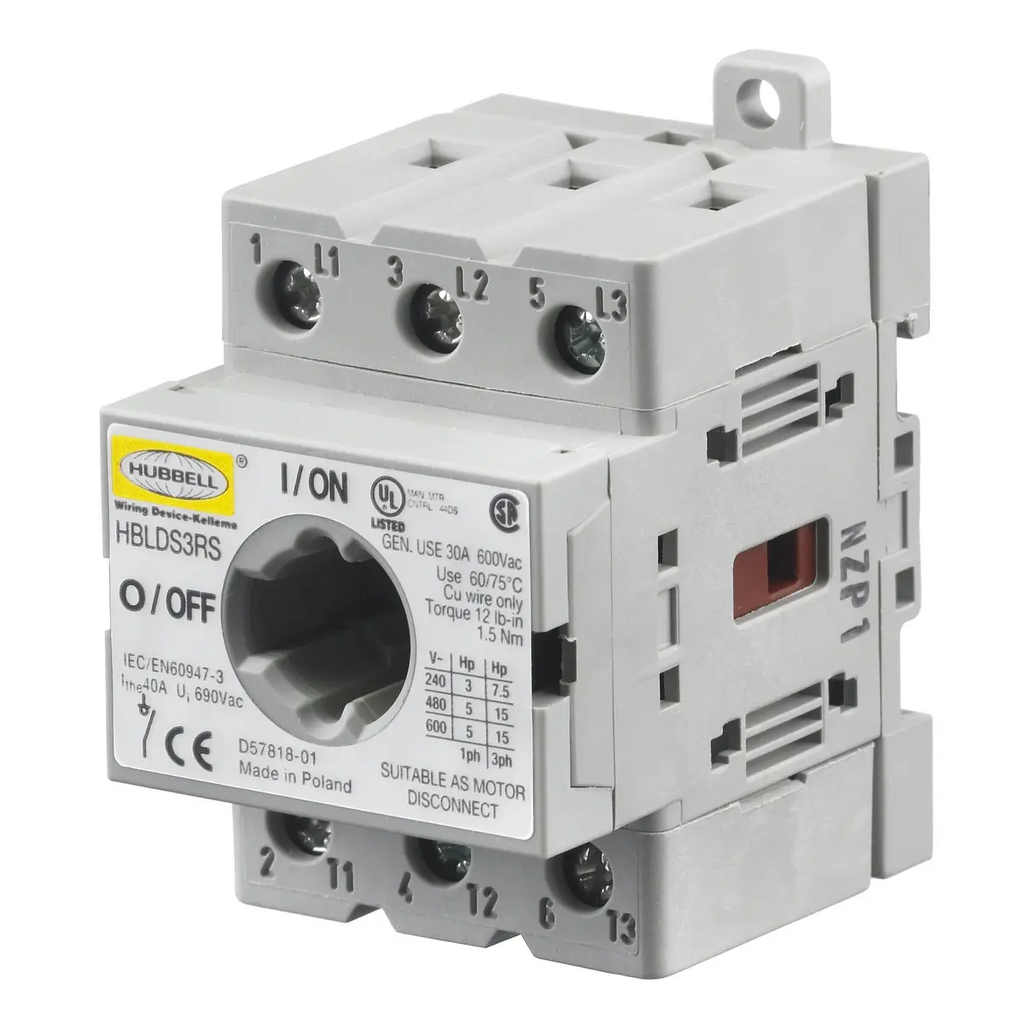

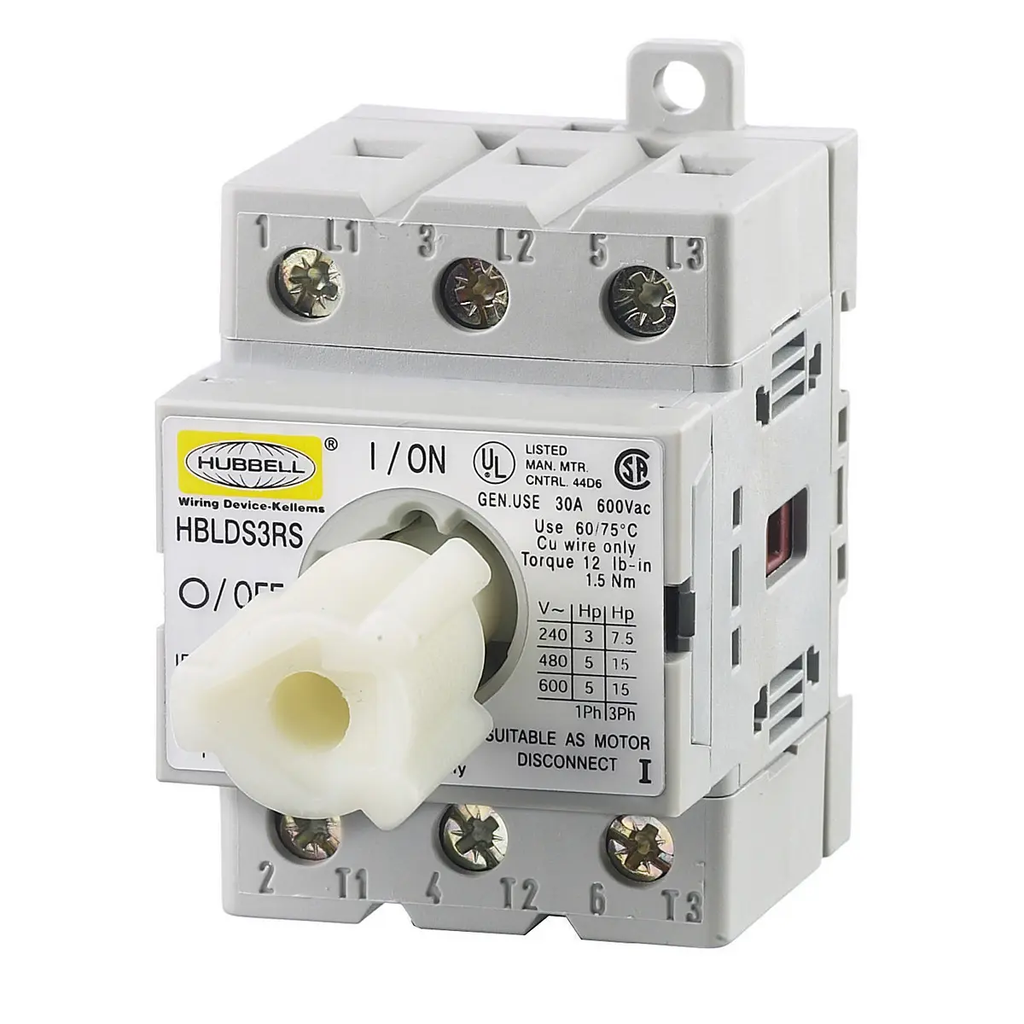

Lülitid ja Valgustuse Juhtseadmed, Tööstuslik Klass, Lahklülitid, Asenduslüliti, Kolm Poolust, 30A Mustale.
NEC paragrahv 430.102(B) nõuab, et igal mootorikontrolleril oleks lahklüliti mootorist ja käitatavast seadmest vaateväljas. Hubbelli Circuit-Lock® Mitte-sulavkaitsmega Lahklülitid on UL loetletud kui käsitsi mootorikontrollerid ja ka "sobivad mootori lahtiühendamiseks" ning vastavad nendele koodinõuetele.
- Tööstuslik Klass
- Lahklülitid
- Asenduslüliti
- Kolm Poolust
General
Catalog Number HBLDS3RS
EU RoHS Indicator No
Item Type Mechanical Interlock Replacement Switch
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current voltage
Electrical - Dielectric Voltage - Withstands 3,000V Min
Electrical - Max. Working Voltage - 600V RMS
Electrical - Operations - Mechanical 10,000 cycles
Electrical 6,000 cycles
Environmental - Flammability - Meets UL 94V0 material classification
Environmental - Moisture Resistance - IP66 suitability
Environmental - Operating Temperature - Maximum continuous +75°C Minimum continuous -40°C
Environmental - UV Resistance - All exposed materials are UV stabilized
Mechanical - Impact Resistance - In accordance with UL 746C
Mechanical - Mounting - External full adjustable feet
Mechanical - Product Identification - Identification and ratings are part of the external label and receptacle face
Mechanical - Terminal Identification - In accordance with UL, CSA
Series Non-Fused;Fused
Style Replacement Switches
Type Accessories
UPC 783585955179
Weight 0.4 lb
Electrical Ratings
Amperage Rating 30 A
Current / Amperage Rating 30 A
Dielectric Strength Withstands 3,000V minimum
Certifications And Compliance
Industry Standard(s)
CSA Certified TYPE 4, 4X and TYPE 12K Enclosure Rating
Listed to UL Standard
Standards - RoHS Compliance Status CM
