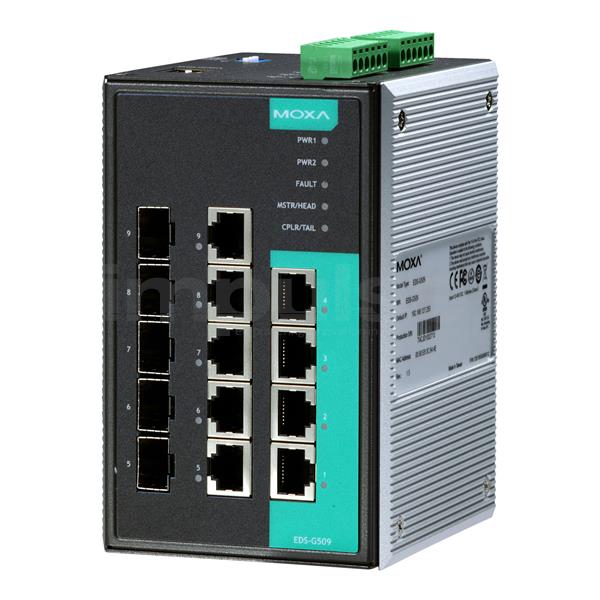

Switch: 4 x 10/100/1000BaseT(X), 5 x 10/100/1000BaseT(X) või 100/1000BaseSFP, -40 kuni 75°C

2, Relay output with current carrying capacity of 1 A @ 24 VDC

2

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

4
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

5

IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseX

802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN

EtherNet/IP, Modbus TCP

Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2

Broadcast storm protection, HTTPS/SSL, Port Lock, RADIUS, SSH, TACACS+, SNMPv3

NTP Server/Client, SNTP

256

8 K

64

1 Mbits

4

VID 1 to 4094

PWR1, PWR2, FAULT, 10/100/1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL

RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

Turbo Ring, Master, Coupler, Reserve

2 removable 6-contact terminal block(s)

0.69 A @ 24 VDC

12/24/48 VDC, Redundant dual inputs

9.6 to 60 VDC

Supported

Supported

Metal

IP30

87.1 x 135 x 107 mm (3.43 x 5.31 x 4.21 in)

1510 g (3.33 lb)

DIN-rail mounting, Wall mounting (with optional kit)

EDS-G509: 0 to 60°C (32 to 140°F)
EDS-G509-T: -40 to 75°C (-40 to 167°F)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

IEC 60068-2-32

EN 55032/24

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

ABS, DNV-GL, LR, NK

EN 50121-4

EN 60950-1, UL 508

IEC 60068-2-27

IEC 60068-2-6

598,659 hrs

Telcordia (Bellcore), GB
