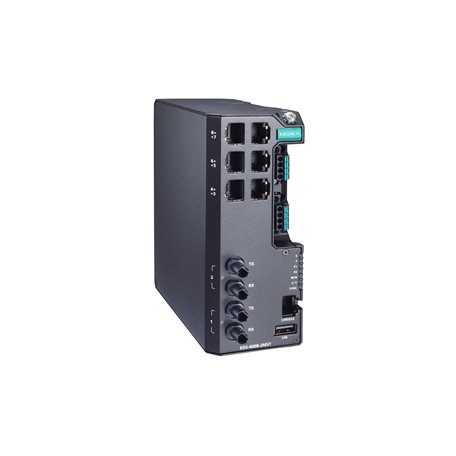

Switch: 6 x 10/100BaseT(X), 2 x 100BaseFX multi-mode ST, -10 kuni 60°C, 12/24/48 VDC

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector)
• 6
• Auto negotiation speed
• Full/Half duplex mode
• Auto MDI/MDI-X connection
• 100BaseFX Ports (multi-mode ST connector)
• 2
• Standards
• IEEE 802.3 for 10BaseT
• IEEE 802.3u for 100BaseT(X) and 100BaseFX
• IEEE 802.3ab for 1000BaseT(X)
• IEEE 802.3z for 1000BaseX
• IEEE 802.3x for flow control
• IEEE 802.3ad for Port Trunk with LACP
• IEEE 802.1Q for VLAN Tagging
• IEEE 802.1D-2004 for Spanning Tree Protocol
• IEEE 802.1w for Rapid Spanning Tree Protocol
• IEEE 802.1p for Class of Service
• IEEE 802.1X for authentication
• Optical Fiber

Ethernet Software Features

• Industrial Protocols
• EtherNet/IP
• Modbus TCP
• PROFINET IO Device
• Management
• IPv4/IPv6
• Flow control
• Back Pressure Flow Control
• DHCP Server/Client
• ARP
• RARP
• LLDP
• Fiber check
• Port Mirroring (SPAN, RSPAN)
• Linkup Delay
• SMTP
• SNMP Trap
• SNMP Inform
• SNMPv1/v2c/v3
• RMON
• TFTP
• SFTP
• HTTP
• HTTPS
• Telnet
• Syslog
• Private MIB
• Filter
• GMRP
• GVRP
• GARP
• 802.1Q VLAN
• IGMP Snooping v1/v2/v3
• IGMP Querier
• Redundancy Protocols
• STP
• RSTP
• Turbo Ring v2
• Turbo Chain
• Ring Coupling
• Dual-Homing
• Link Aggregation
• MSTP
• MRP
• Security
• Broadcast storm protection
• Rate Limit
• Trust access control
• Static Port Lock
• MAC Sticky
• HTTPS/SSL
• SSH
• RADIUS
• TACACS+
• Access control list
• Login and Password Policy
• DHCP Snooping
• Time Management
• SNTP
• NTP Server/Client
• NTP Authentication
• IEEE 1588v2 PTP (hardware-based)
• Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
• Protocols
• IPv4/IPv6
• TCP/IP
• UDP
• ICMP
• ARP
• RARP
• TFTP
• DNS
• NTP Client
• DHCP Server
• DHCP Client
• 802.1X
• QoS
• HTTPS
• HTTP
• Telnet
• SMTP
• SNMPv1/v2c/v3
• RMON
• Syslog
• MIB
• P-BRIDGE MIB
• Q-BRIDGE MIB
• IEEE8021-SPANNING-TREE-MIB
• IEEE8021-PAE-MIB
• IEEE8023-LAG-MIB
• LLDP-EXT-DOT1-MIB
• LLDP-EXT-DOT3-MIB
• SNMPv2-MIB
• RMON MIB Groups 1, 2, 3, 9

Switch Properties

• MAC Table Size
• 16 K
• Jumbo Frame Size
• 9.216 KB
• Max. No. of VLANs
• 256
• VLAN ID Range
• VID 1 to 4094
• IGMP Groups
• 512
• Priority Queues
• 4
• Packet Buffer Size
• 1 MB

LED Interface

• LED Indicators
• PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC

Serial Interface

• Console Port
• RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Interface

• USB Connector
• USB Type A (Reserved)

Input/Output Interface

• Alarm Contact Channels
• 1, Relay output with current carrying capacity of 1 A @ 24 VDC
• Digital Input Channels
• 1
• Digital Inputs
• +13 to +30 V for state 1
• -30 to +3 V for state 0
• Max. input current: 8 mA
• Buttons
• Reset button

DIP Switch Configuration

• DIP Switches
• Turbo Ring, Master, Coupler, Reserve

Power Parameters

• Connection
• 2 removable 4-contact terminal block(s)
• Pre-installed Power Module
• PWR-100–LV
• Note
• The EDS-4008 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.
•

• For example:
• EDS-4008-T + PWR-100–LV = EDS-4008-LV-T
• EDS-4008-T + PWR-105-HV-I = EDS-4008-HV-T
•

• If you install a different power module, refer to the specifications of the corresponding
• model. For example, if you replace the power module of the EDS-4008–LV-T
• with the PWR-105–HV-I, refer to the specifications of the EDS-4008–HV-T.
• Input Voltage
• 12/24/48 VDC
• Redundant dual inputs
• Operating Voltage
• 9.6 to 60 VDC
• Input Current
• 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
• Power Consumption (Max.)
• 8.45 W
• Overload Current Protection
• Supported
• Reverse Polarity Protection
• Supported

Physical Characteristics

• IP Rating
• IP40
• Dimensions
• 55 x 140 x 132 mm (2.17 x 5.51 x 5.2 in)
• Weight
• 810 g (1.79 lb)
• Installation
• DIN-rail mounting
• Wall mounting (with optional kit)
• Housing
• Metal

Environmental Limits

• Operating Temperature
• -10 to 60°C (14 to 140°F)
• Storage Temperature (package included)
• -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity
• 5 to 95% (non-condensing)

Standards and Certifications

• Industrial Cybersecurity
• IEC 62443-4-1
• IEC 62443-4-2
• Safety
• UL 61010-2-201
• EN 62368-1 (LVD)
• EMC
• EN 55032/35
• EN 61000-6-2/-6-4
• EMI
• CISPR 32, FCC Part 15B Class A
• EMS
• IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
• IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
• IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
• IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
• IEC 61000-4-6 CS: 10 V
• IEC 61000-4-8 PFMF
• Maritime
• LR
• DNV
• ABS
• NK
• Vibration
• IEC 60068-2-6
• Shock
• IEC 60068-2-27
• Freefall
• IEC 60068-2-32
• Railway
• EN 50121-4
• Traffic Control
• NEMA TS2
• Power Substation
• IEC 61850-3
• IEEE 1613 Class 1
• Hazardous Locations
• ATEX
• IECEx
• Class I Division 2

MTBF

• Time
• 1,015,718 hrs
• Standards
• Telcordia SR332

Warranty

• Warranty Period
• 5 years
