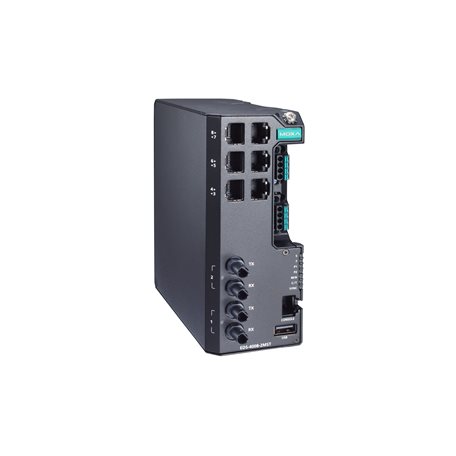

EDS-4008 seeria on 8-portiline hallatav Fast Ethernet lüliti, millel on võimalus kasutada nelja 1 Gbps uplink-porti või kahte 100M ST/SC fiiberoptilist ühendust.
porti. See seeria pakub ka nelja 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+) ja 802.3bt standardile vastava Ethernet PoE-portiga mudelit.
võimalusi suure ribalaiusega PoE-seadmete ühendamiseks.
Redundantsed Ethernet-tehnoloogiad, nagu Turbo Ring, Turbo Chain ja RSTP/STP, suurendavad teie süsteemi töökindlust ja parandavad
teie võrgu magistraalvõrgu kättesaadavust. EDS-4008-seeria on loodud spetsiaalselt nõudlike rakenduste jaoks, näiteks video- ja protsessirakenduste jaoks.
seire, ITS- ja DCS-süsteemid, mis kõik saavad kasu skaleeritavast magistraalvõrgustikust.
EDS-4008-seeria vastab IEC 62443-4-2 ja IEC 62443-4-1 tööstusliku küberturvalisuse sertifikaatidele, mis hõlmavad nii toote
turvalisust kui ka turvalise arenduse elutsükli nõudeid, aidates meie klientidel täita turvalise tööstusvõrgu nõuetele vastavuse nõudeid.
disainile.
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector)
- 6
- Auto negotiation speed
- Full/Half duplex mode
- Auto MDI/MDI-X connection
- 100BaseFX Ports (multi-mode ST connector)
- Standards
- IEEE 802.3 for 10BaseT
- IEEE 802.3u for 100BaseT(X) and 100BaseFX
- IEEE 802.3ab for 1000BaseT(X)
- IEEE 802.3z for 1000BaseX
- IEEE 802.3x for flow control
- IEEE 802.3ad for Port Trunk with LACP
- IEEE 802.1Q for VLAN Tagging
- IEEE 802.1D-2004 for Spanning Tree Protocol
- IEEE 802.1w for Rapid Spanning Tree Protocol
- IEEE 802.1p for Class of Service
- IEEE 802.1X for authentication
- Optical Fiber
Ethernet Software Features
- Industrial Protocols
- EtherNet/IP
- Modbus TCP
- PROFINET IO Device
- Management
- IPv4/IPv6
- Flow control
- Back Pressure Flow Control
- DHCP Server/Client
- ARP
- RARP
- LLDP
- Fiber check
- Port Mirroring (SPAN, RSPAN)
- Linkup Delay
- SMTP
- SNMP Trap
- SNMP Inform
- SNMPv1/v2c/v3
- RMON
- TFTP
- SFTP
- HTTP
- HTTPS
- Telnet
- Syslog
- Private MIB
- Filter
- GMRP
- GVRP
- GARP
- 802.1Q VLAN
- IGMP Snooping v1/v2/v3
- IGMP Querier
- Redundancy Protocols
- STP
- RSTP
- Turbo Ring v2
- Turbo Chain
- Ring Coupling
- Dual-Homing
- Link Aggregation
- MSTP
- MRP
- Security
- Broadcast storm protection
- Rate Limit
- Trust access control
- Static Port Lock
- MAC Sticky
- HTTPS/SSL
- SSH
- RADIUS
- TACACS+
- Access control list
- Login and Password Policy
- DHCP Snooping
- Time Management
- SNTP
- NTP Server/Client
- NTP Authentication
- IEEE 1588v2 PTP (hardware-based)
- Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
- Protocols
- IPv4/IPv6
- TCP/IP
- UDP
- ICMP
- ARP
- RARP
- TFTP
- DNS
- NTP Client
- DHCP Server
- DHCP Client
- 802.1X
- QoS
- HTTPS
- HTTP
- Telnet
- SMTP
- SNMPv1/v2c/v3
- RMON
- Syslog
- MIB
- P-BRIDGE MIB
- Q-BRIDGE MIB
- IEEE8021-SPANNING-TREE-MIB
- IEEE8021-PAE-MIB
- IEEE8023-LAG-MIB
- LLDP-EXT-DOT1-MIB
- LLDP-EXT-DOT3-MIB
- SNMPv2-MIB
- RMON MIB Groups 1, 2, 3, 9
Switch Properties
- MAC Table Size
- Jumbo Frame Size
- Max. No. of VLANs
- VLAN ID Range
- IGMP Groups
- Priority Queues
- Packet Buffer Size
LED Interface
- LED Indicators
- PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
Serial Interface
- Console Port
- RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
USB Interface
Input/Output Interface
- Alarm Contact Channels
- 1, Relay output with current carrying capacity of 1 A @ 24 VDC
- Digital Input Channels
- Digital Inputs
- +13 to +30 V for state 1
- -30 to +3 V for state 0
- Max. input current: 8 mA
- Buttons
DIP Switch Configuration
- DIP Switches
- Turbo Ring, Master, Coupler, Reserve
Power Parameters
- Connection
- 2 removable 4-contact terminal block(s)
- Pre-installed Power Module
- Note
- The EDS-4008 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.
- For example:
- EDS-4008-T + PWR-100–LV = EDS-4008-LV-T
- EDS-4008-T + PWR-105-HV-I = EDS-4008-HV-T
- If you install a different power module, refer to the specifications of the corresponding
- model. For example, if you replace the power module of the EDS-4008–LV-T
- with the PWR-105–HV-I, refer to the specifications of the EDS-4008–HV-T.
- Input Voltage
- 110/220 VDC/VAC
- Single input
- Operating Voltage
- 88 to 300 VDC, 85 to 264 VAC
- Input Current
- 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A
- Power Consumption (Max.)
- Overload Current Protection
- Reverse Polarity Protection
Physical Characteristics
- IP Rating
- Dimensions
- 55 x 140 x 132 mm (2.17 x 5.51 x 5.2 in)
- Weight
- Installation
- DIN-rail mounting
- Wall mounting (with optional kit)
- Housing
Environmental Limits
- Operating Temperature
- -10 to 60°C (14 to 140°F)
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- Industrial Cybersecurity
- IEC 62443-4-1
- IEC 62443-4-2
- Safety
- UL 61010-2-201
- EN 62368-1 (LVD)
- EMC
- EN 55032/35
- EN 61000-6-2/-6-4
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
- IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
- IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
- IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
- IEC 61000-4-6 CS: 10 V
- IEC 61000-4-8 PFMF
- Vibration
- Shock
- Freefall
- Railway
- Traffic Control
- Power Substation
- IEC 61850-3
- IEEE 1613 Class 1
MTBF
Warranty
