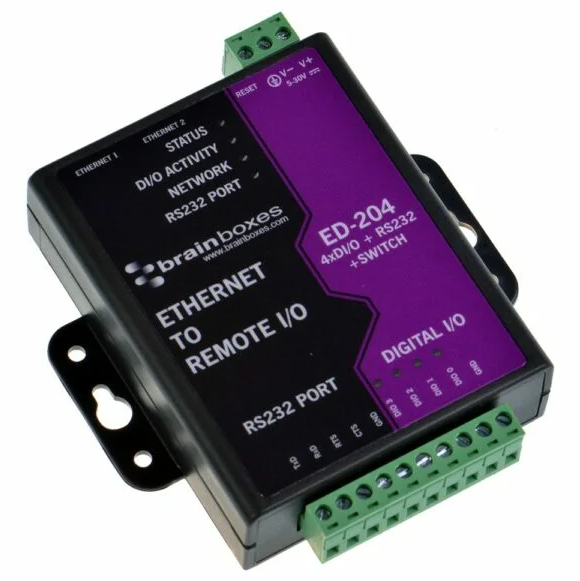

- 4 digitaalset sisendit/väljundit + RS232 jadaport + Ethernet-lüliti
- Täielik Ethernet-jadaseadme server: kuni 1 megabaud
- Tehase tootmisprotsessi juhtimine ja automatiseerimine
- Kasutajasõbralik tarkvaraliides
- Temperatuurivahemik -10 °C kuni +60 °C / +14 °F kuni +140 °F
- DIN-siinile ja seinale paigaldatav
Ethernet-DIO seade jadaportiga: 4 digitaalset sisendkanalit. Võimas ARM 80 MHz, 32-bitine CPU. Pakub töökindlaid ja intelligentsed „juhtimispoolseid” seadmeid, mis tagavad liidese 24 V tehase keskkonna süsteemidega, mida tavaliselt nimetatakse „protsessipoolseks”. Seade installitakse arvutisse COM-portina, et tagada täielik tagasiühilduvus, mis on oluline vanemate rakenduste jaoks.
Tüüpilised rakendused on vahelduvvoolu- ja alalisvoolumootorite, ventilaatorite, releedraiverite, pumpade, pingeregulaatorite ja akulaadijate, LED-ide ja pirnide, kliimaseadmete, küttekehad ja solenoidide juhtimine ja lülitamine.
IO ChannelsIO ProtocolsModbus TCP or DCON ASCII (over TCP or Virtual COM port)
Description4 Digital Inputs/Outputs
Digital Inputs4
Digital Outputs4
Analog Inputs0
Analog Outputs0
WatchdogWhen device comms is lost, outputs can be set to predetermined state
Power On ValuesOutputs can be set to predetermined values on power on
Safe ValuesWhen Input triggered, outputs can be automatically set to predetermined value
Digital IOInput Logic Level 00.0V to +1.0V
Input Logic Level 1+2.0V to +30V
Input LatchesTriggered by user programmable positive or negative edges, stays true until acknowledged
Input CounterUser progammable- counts positive or negative transitions up to 200Hz
Digital Output TypeOpen drain transistor, protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min
Maximum Output Load Voltage30 VDC
Maximum Output Current Sink0.85A per channel
Serial PortIO GatewayTrue serial port: RS232/422/485
ProtocolRS232
NetworkNumber of Ports2: 1 Uplink and 1 LAN, individually configurable
Network Port TypeRJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX)
Network ProtocolsICMP, IP, TCP, DHCP, HTTP
Protection1500V Magnetic Isolation between ports and network
PowerPower Input5V - 30V DC input, reverse polarity protected
Power Supply 1 DescriptionGlobal Power Supply - PW-600
Power Supply 2 DescriptionPower supply PW-650
Max Input35 Volts
GeneralOperating Temperature Range-10 °C to +60 °C / +14 °F to +140 °F
Industrial StandardNo
Storage Temperature-10 °C to +70 °C / +14 °F to +158 °F
Galvanic IsolationNo
Power Consumption100mA@24V 2.5W max
Product Weight0.134 kg, 4.73 ounces
Product Dimensions116x100x26 mm, 4.6x3.9x1.0 inches
Packaged Weight0.230 kg, 8.11 ounces
Packaged Dimensions160x135x49 mm, 6.3x5.3x1.9 inches
GTIN (barcode)837324009842
Operating System CompatibilityOperating Systems
Microsoft Windows 10
Suitable for any device with a Web Browser
Microsoft Windows 8 32 bit & 64 bit Editions
Windows Server 2012
Raspberry Pi
Android
Windows Server 2008 R2
Microsoft Windows 7 32 bit & 64 bit Editions
iOS
Windows Server 2008 32 bit & 64 bit Editions
Windows Vista 32 bit & 64 bit Editions
Mac OS X
Windows XP 32 bit & 64 bit Editions
Microsoft Windows 2000
Linux
