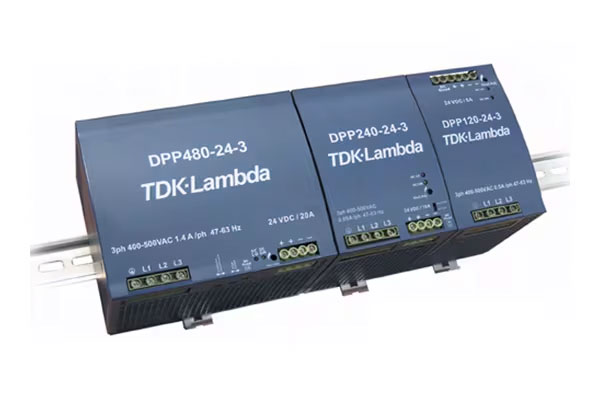

DPP120 - 960 seeria 120W, 240W, 480W ja 960W 3-faasilised DIN rööbastele paigaldatavad toiteallikad
Peamised turusegmendid ja rakendused
- Tööstusjuhtimine: Mootorite juhtimissüsteemid tehastele
- Automaatika: Autotööstus,
- Testimine ja mõõtmine: Keemiline töötlemine , Instrumentatsioonimõõtmine
Electrical Characteristics
- Input 3-phase
- Input Voltage Range[AC] 340 to 575Vac
- Input Voltage Range[DC] 480 to 820Vdc
- Efficiency 90% Typ.
- Rated Output Voltage[DC] 24Vdc
- Output Voltage Range[DC] 22.5 to 28.5Vdc
- Maximum Output Current 10A
- Maximum Output Power 240W
Package Type & Size
- Package / Mounting DIN rail
Industry Standard Size
- Width(W) 89mm Nom. (3.50in Nom.)
- Height(H) 124mm Nom. (4.88in Nom.)
- Depth(D) 111.9mm Nom. (4.41in Nom.)
- Weight 1100g Typ. (2.4lbs Typ.)
Other
- Operating Temp. Range -40 to 71°C
- Cooling Convection
- Safety Standard(Certified)
EN60950-1
UL60950-1
EN62368-1
UL62368-1
UL508
- Safety Standard(Conformed)
Remarks
- This page only shows representative characteristics. Please refer to the technical data for detailed specifications and conditions.
