4xDB9M kaabel CP-134EL-A-I kaardile

Features and Benefits

PCI Express x1 compliant
921.6 kbps maximum baudrate for super fast data transmission
128-byte FIFO and on-chip H/W, S/W flow control
Low profile form factor fits small-sized PCs
Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
Easy maintenance with on-board LEDs and management software

Overview

The CP-104EL-A is a smart, 4-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even Unix. In addition, each of the board’s 4 RS-232 serial ports supports a super fast 921.6 kbps baudrate. The CP-104EL-A provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express “x1” classification allows it to be installed in any PCI Express slot.

Smaller Form Factor

The CP-104EL-A is a low profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.

Drivers Provided for Windows, Linux, and Unix

Moxa continues to support a wide variety of operating systems, and the CP-104EL-A board is no exception. Reliable Windows COM and Linux/Unix TTY drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.

• Hardware
Comm. Controller	16C550C compatible
Bus	PCI Express x1
Connector	DB44 female
• Serial Interface
Number of Ports	4
Serial Standards	RS-232
Max. No. of Boards per PC	4
• Performance
Baudrate	50 bps to 921.6 kbps
• Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF
• Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• Physical Characteristics

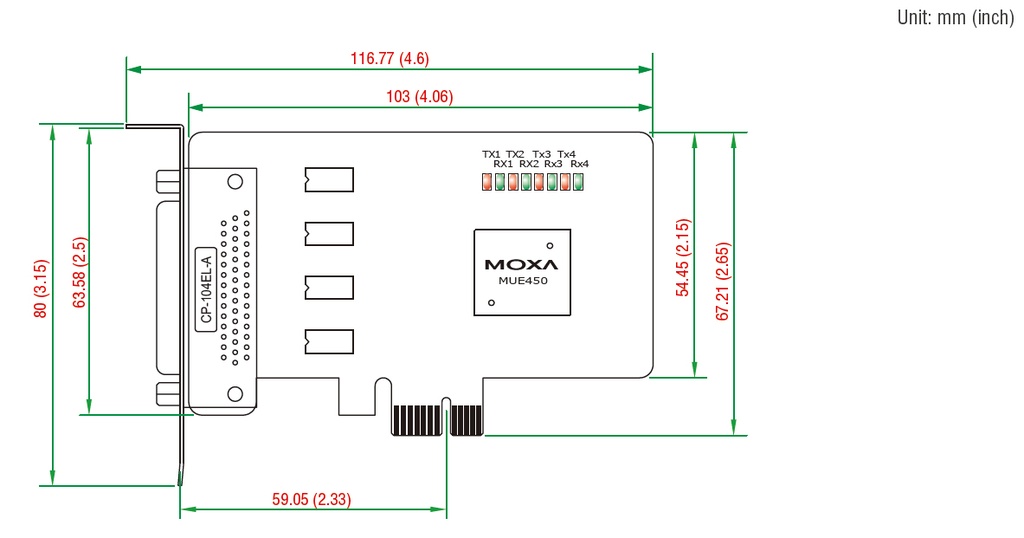

Dimensions	67.21 x 103 mm (2.65 x 4.06 in)
• Driver Support
Windows	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS
Linux	Linux 2.4.x, 2.6.x, 3.x
Unix-like Systems	QNX 6, SCO OpenServer, UnixWare 7, Solaris 10
Note	Please refer to Moxa’s website for the latest driver support information.
• Environmental Limits
Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature	-20 to 85°C (-4 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
• Standards and Certifications
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class B
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000
• MTBF (mean time between failures)
Time	3,601,447 hrs
Standard	Telcordia (Bellcore) TR/SR
• Power Requirements
Input Current	805 mA @ 3.3 VDC
• Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty

18,00 € (ilma km-ta)
