KIRJELDUS
Punutud varjestatud LiYCY kaablid
Juhtmed: O.F.C. punasest vasest keermestatud.
Aheraine värvid: DIN 47100 standardid
Tühjendusjuhe: O.F.C. tinatatud vasest keermestatud.
Kogu varjestus: Punutud kate 85% välismetallist tinatatud vasest.
Punutud varjestatud LiYCY-kaabel andmeedastuseks ja elektroonikaks vastavalt standarditele VDE 0812 / VDE 0207.

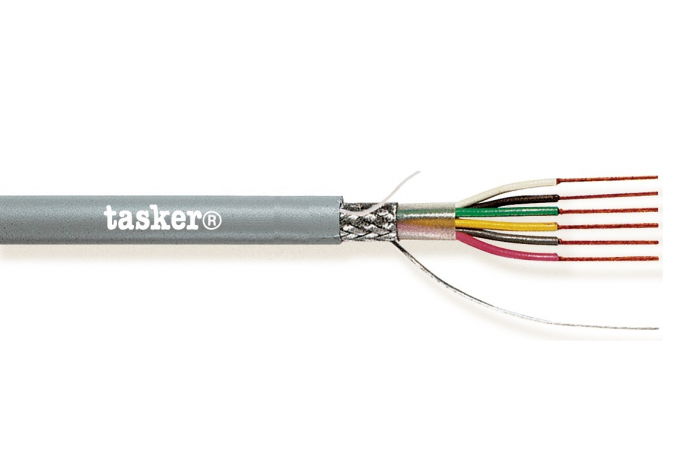

NOTE The picture don’t represent the real number of conductors
CATEGORY Shielded Cable for Data (See Data Network Catalogue)
APPLICATIONS Data transmissions and electronics
A: Grey Soft PVC Sheath. Outer cable diam. Ø 7,20 (±0,20) mm.
B: Braided Shielding O.F.C. Tinned Copper covering 85% + Drain Wire
C: Cores Insulation with Soft PVC. Core diam. Ø 1,10 (±0,20) mm.
Color Code DIN 47100 Standards: White, Brown, Green, Yellow, Grey,
Pink, Blue, Red, Black, Violet, Grey/Pink, Red/Blue, White/Green,
Brown/Green. Stranded with waste filler between conductors and wrapped with Mylar Tape.
D: Stranded O.F.C. Red Copper, formation 18x0,10 mm.
Nom. Cross section 14x0,14 mm².
MARKING tasker® C249 LiYCY 14x0, 14 - 26 AWG LOW VOLTAGE Computer Cable
Made In Italy
CUSTOM PRODUCTION This product may be custom produced also in LSZH, PE, PUR, with or without Metallic Armor.
Cable Properties
- Conductor Resistance 138 Ω/Km
- Capacity Core/Core 80 pF/mt
- Capacity Core/Shield 150 pF/mt
- Max Rated Voltage 49 V
- Operative Temperature -15/+70°C
