KIRJELDUS
Punutud varjestatud LiYCY kaablid
Juhtmed: O.F.C. punasest vasest keermestatud.
Aheraine värvid: DIN 47100 standardid
Tühjendusjuhe: O.F.C. tinatatud vasest keermestatud.
Kogu varjestus: Punutud kate 85% välismetallist tinatatud vasest.
Punutud varjestatud LiYCY-kaabel andmeedastuseks ja elektroonikaks vastavalt standarditele VDE 0812 / VDE 0207.
NOTE CATEGORY APPLICATIONS

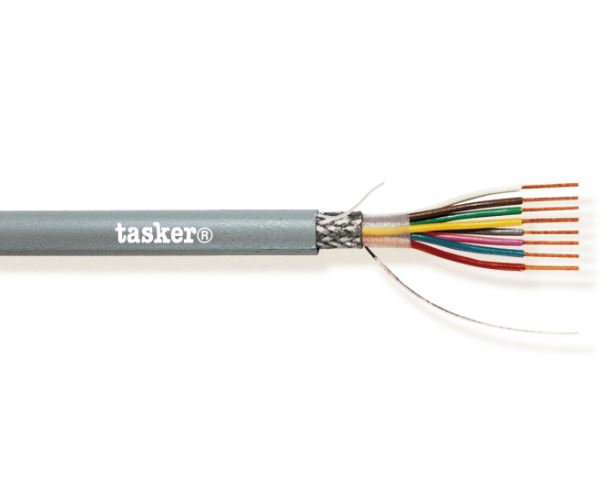

The picture don’t represent the real number of conductors.
Shielded Cable (See Data Network Catalogue)
Data transmission and electronics
A: Grey Soft PVC Sheath. Outer cable Ø: 9,00 (±0,20) mm.
B: Braided Shielding in O.F.C. Tinned Copper, covering 85% + Drain Wire.
C: Cores Insulation with Soft PVC– DIN 47100 Standards.
Color Code: White, Brown, Green, Yellow, Grey, Pink, Blue, Red, Black,
Violet, Grey/Pink, Red/Blue, White/Green, Brown/Green, White/Yellow,
Yellow/Brown. Diam. Ø 1,30 (±0,20) mm.
Stranded with waste filler between conductors and wrapped with Mylar Tape.
D: Stranded O.F.C. Red Copper formation 14x0,15 mm.
Nom. Cross section 14x0,25 mm².
MARKING CUSTOM PRODUCTION tasker® C218 LiYCY 16x0,25 mm² – Low Voltage Computer Cable – Made in Italy
This product may be custom produced also in L.S.Z.H. polymer, PE, PUR, with or without Metallic Armor.
Cable Properties
- Conductor Resistance 75,85 Ω/Km
- Capacity Core/Core 70 pF/m
- Capacity Core/Shield 150 pF/m
- Max Rated Voltage 49 V
- Operative Temperature -15/+70°C
