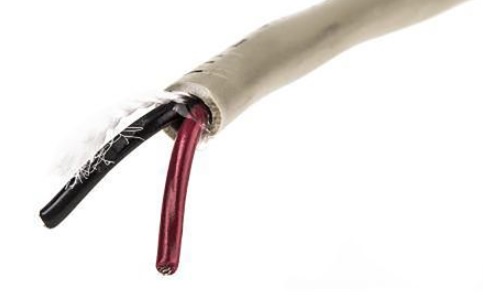

2x20AWG D=5,26mm, 300V, hall PVC 50m Pro-Tekt

Name: [B955021 GE321] 2x20AWG D=5,26mm, 300V, hall PVC 50m Pro-Tekt
SKU: EE-100-171-066
Price: 85.81 EUR
Availability: InStock

Physical & Mechanical Properties

1) Temperature Range -30 to 105°C
2) Bend Radius 10X Cable Diameter
3) Pull Tension 17.5 Lbs, Maximum
4) Sunlight Resistance Yes

Electrical Properties (For Engineering purposes only)

1) Voltage Rating 300 VRMS
2) Capacitance 30 pf/ft @1 kHz, Nominal Conductor to Conductor
3) Characteristic Impedance 73 Ω
4) Inductance 0.19 µH/ft, Nominal
5) Conductor DCR 10.2 Ω/1000ft @20°C, Nominal

85,81 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: B955021 GE321
Tootekood: EE-100-171-066

Spetsifikatsioon

Weight

2 kg
