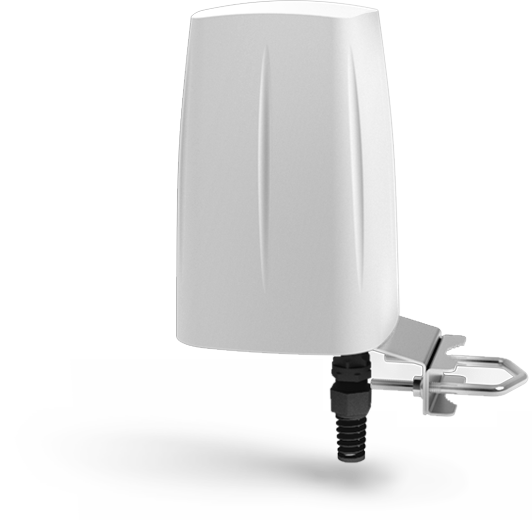

QuSpot for Teltonika RUTX09
Integrated outdoor multi band LTE omni antennas + GPS antenna + place to install Teltonika RUTX09 (All-in-one)
QuSpot omni LTE antenna for Teltonika RUTX09 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded GPS antenna. If you use RUTX09 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
All antennas and Teltonika router integrated in one enclosure
Outdoor antenna works in any weather conditions, IP67
Antenna perfectly matched with the router
Passive PoE support
Easy to install
Dual SIM – significantly reduce roaming costs
|
LTE ANTENNA SPECIFICATION |
|---|
FREQUENCY
Supported LTE bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 2305-2360 |
0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz |
|---|
|
GAIN |
0.694 - 0.96 GHz : 2 dBi
1.7 - 2.2 GHz : 2 dBi
2.2 - 2.7 GHz : 4 dBi |
|---|
|
VSWR |
<1.60, max <2.00 |
|---|
|
BEAMWIDTH |
360°/35° ±5° |
|---|
|
POLARIZATION |
Vertical |
|---|
|
IMPEDANCE |
50 Ω |
|---|
|
WI-FI ANTENNA SPECIFICATION |
|---|
|
FREQUENCY |
2.40 - 2.50 GHz
4.70 - 6.00 GHz |
|---|
|
GAIN |
2.40 - 2.50 GHz : 6 dBi
4.70 - 6.00 GHz : 7 dBi |
|---|
|
VSWR |
<1.70, max <2.00 |
|---|
|
BEAMWIDTH |
360°/25° ±5° |
|---|
|
POLARIZATION |
Vertical |
|---|
|
IMPEDANCE |
50 Ω |
|---|
|
MECHANICAL SPECIFICATION |
|---|
|
MATERIALS |
ABS, aluminum, PTFE |
|---|
|
INGRESS PROTECTION |
IP67 |
|---|
|
DIMENSIONS |
160 x 160 x 240 mm
6.3 x 6.3 x 9.45 inch |
|---|
|
WEIGHT |
1.5 kg
3.31 lbs |
|---|
|
OPERATING TEMPERATURE |
From -40°C to 75°C
From -40°F to 167°F |
|---|
