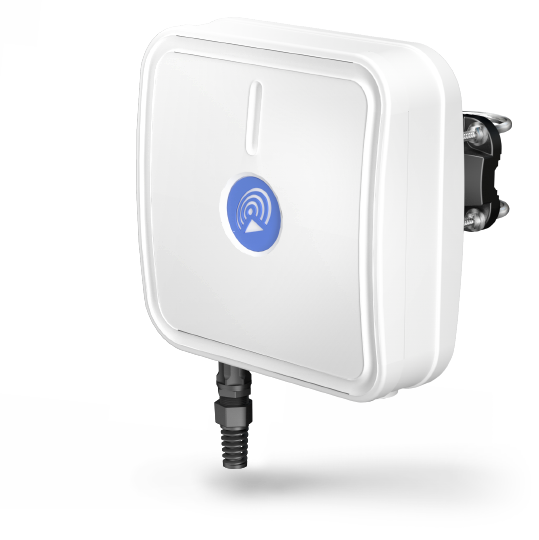

QuMax for Teltonika RUTX09
Integrated outdoor multi band high power LTE directional antennas + GPS antenna + place to install Teltonika RUTX09 (All-in-one)
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTX09 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna.
All antennas and Teltonika router integrated in one enclosure
Outdoor antenna works in any weather conditions, IP67
Antenna perfectly matched with the router
Passive PoE support
Easy to install
Dual SIM – significantly reduce roaming costs
|
LTE ANTENNA SPECIFICATION |
|---|
FREQUENCY
Supported LTE bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 2305-2360 |
0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz |
|---|
|
GAIN |
0.694 - 0.96 GHz : 4 dBi
1.7 - 2.2 GHz : 5 dBi
2.2 - 2.7 GHz : 6 dBi |
|---|
|
VSWR |
<1.30, max <2.00 |
|---|
|
BEAMWIDTH |
90°/90° ±30° |
|---|
|
POLARIZATION |
Vertical |
|---|
|
IMPEDANCE |
50 Ω |
|---|
|
WI-FI ANTENNA SPECIFICATION |
|---|
|
FREQUENCY |
2.40 - 2.50 GHz
4.70 - 6.00 GHz |
|---|
|
GAIN |
2.40 - 2.50 GHz : 6 dBi
4.70 - 6.00 GHz : 7 dBi |
|---|
|
VSWR |
<1.70, max <2.00 |
|---|
|
BEAMWIDTH |
360°/25° ±5° |
|---|
|
POLARIZATION |
Vertical |
|---|
|
IMPEDANCE |
50 Ω |
|---|
|
MECHANICAL SPECIFICATION |
|---|
|
MATERIALS |
ABS, aluminum, PTFE, Fiberglass |
|---|
|
INGRESS PROTECTION |
IP67 |
|---|
|
DIMENSIONS |
272 x 276 x 96 mm
10.71 x 10.87 x 3.78 inch |
|---|
|
WEIGHT |
1.8 kg
3.97 lbs |
|---|
|
OPERATING TEMPERATURE |
From -40°C to 75°C
From -40°F to 167°F |
|---|
|
DEVICE SPECIFICATION (NOT INCLUDED) |
|---|
|
