Video modes
Support for standard PC, Sun and Mac video modes up to a resolution of
1600 x 1200 @ 60Hz. DDC emulation supported via connected Computer Access Modules (CAMs).
Hardware compatibility
Video, mouse, keyboard and optional audio support for PC, Sun, Mac, RS/6000, Alpha and SGI computers using PS/2, USB or Sun flash upgradable Computer Access Modules (CAMs).
OS compatibility
Operates with all currently known software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Local console
Video: HDD15 socket
Keyboard/Mouse: USB type A sockets
Audio: 3.5mm stereo jack

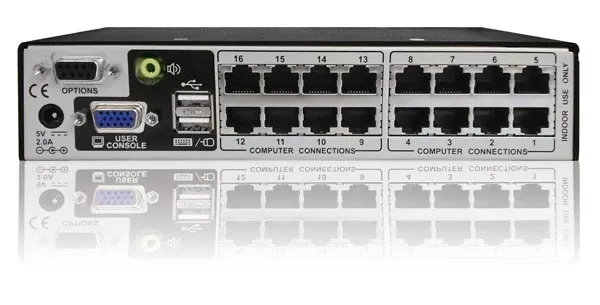

Connections
Local console connections as stated above.
CATx computer connections: all RJ45 style.
10/100 auto-sensing Ethernet network port: RJ45.
Power connection: 2.5mm DC jack (5V DC, 2.5A).
RS232 triggered power switching and syncing: DB9 plug
Physical design
Compact 1U high metal case construction suited for rack mounting (rack mount kits available).
Width: 198mm/7.92", Height: 44mm/1.76", Depth: 120mm/4.8".
Weight: 0.77kg/1.70lbs.
Power supply
Mains adaptor with IEC style power lead (included).
Input: 100-240VAC 0.5A 50-60Hz
Output: 5VDC 2.5A
Operating temperature
0Deg C to 40Deg C / 32Deg F to 104Deg F
Approvals
CE, FCC
Order Codes
CATx IP - 8 port version: AVX1008IP-XX
CATx IP - 16 port version: AVX1016IP-XX
Single Rack Kit: RMK-ALIP
Dual Rack Kit: RMK-ALIP-Dual
CAM: Computer Access Module Order Codes
PS/2 CAMs: CATX-PS2 (PS/2 only), CATX-PS2-A (PS/2 plus audio)
USB CAMs: CATX-USB (USB only), CATX-USB-A (USB plus audio)
Sun CAM: CATX-SUNA (Sun plus audio)
