Hardware compatibility: Supports PC, RS/6000, Alpha, SGI, Sun and Apple with USB keyboard and mouse, and VGA or DVI video interfaces
Software compatibility: Operates with all known software and operating systems including
Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.
Computer connections at switch: USB2.0 type B, Dual-link DVI-I, 3.5mm stereo jack
Resolution: All resolutions up to 5MP per head (eg 2560x1920 4.92M3-R).
Local KVM console connection Video:
Video: Dual-link DVI-I
Keyboard/Mouse: 2 x USB type A
Switched USB: 2 x USB2.0 type A
Switched USB: Supports USB 2.0 devices in low, full and high speed modes.
USB True Emulation: Emulates keyboard and mouse on each port. Low speed HID USB 2.0 devices supported
Audio: 3.5mm stereo jack
Other Connections: Options (flash upgrade, sync with other AV4PRO-DVI and RS232 triggered power switches): Modular 10P10C

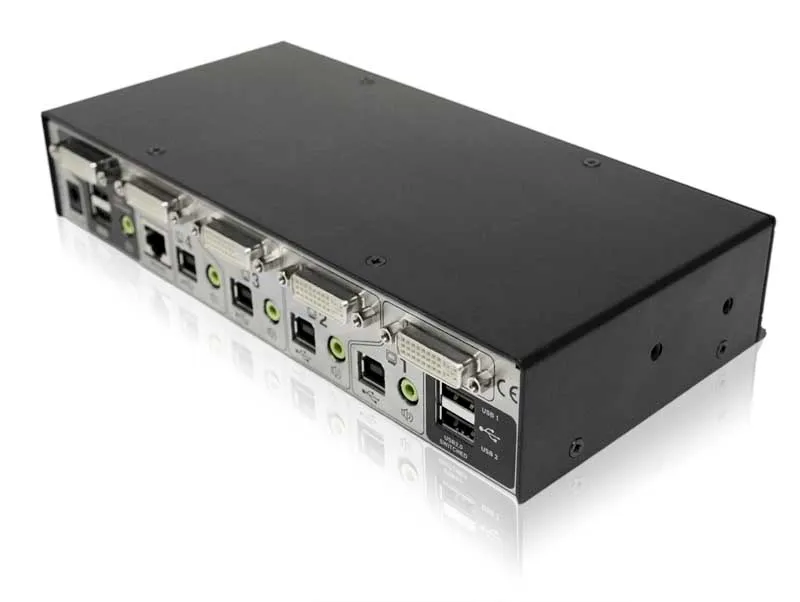

Physical design: 1U high metal case 233mm (w), 115mm (d), 44mm (h)
Power : 2.5mm DC jack (power adapter included),100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter
Operating temperature: 0 degC to 40 degC / 32 degF to 104 degF
Approvals: CE, FCC
