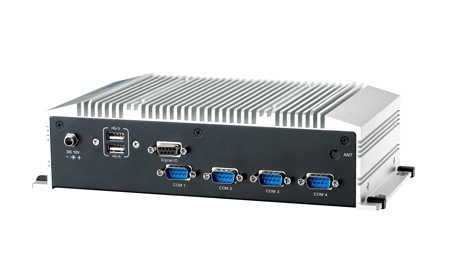

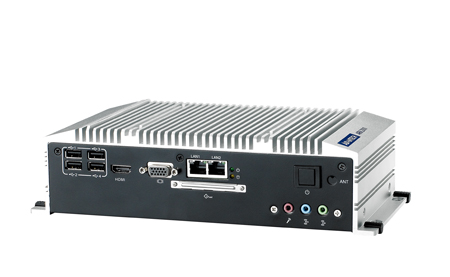

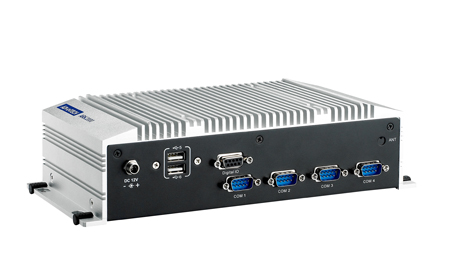

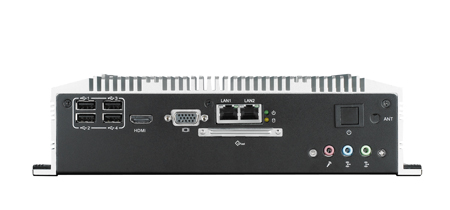

Tööstuslik arvuti: Intel Atom Dual Core D2550 1.86 GHz, 1xVGA, 1x HDMI, kuni 4GB DDR3, 6xUSB 2.0, 1xRS-232/422/485, 3xRS-232, 2xGB LAN,SIMi võimalus, Win 7 32 bit

Processor
  • CPU
  • Core Number
  • Frequency
  • L2 Cache
  • Chipset
  • BIOS
  • Intel Atom N2600
  • Intel Atom D2550
  • 2
  • 2
  • 1.6 GHz (Dual Core)
  • 1.86 GHz (Dual Core)
  • 1MB
  • 1MB
  • Intel Atom N2600/D2550 + Intel NM10
  • Intel Atom N2600/D2550 + Intel NM10
  • AMI EFI 16Mbit
  • AMI EFI 16Mbit
Memory
  • Technology
  • Max. Capacity
  • Socket
  • DDR3 800MHz
  • DDR3 1066MHz
  • 4 GB
  • 4 GB
  • 1 x 204-pin SODIMM
  • 1 x 204-pin SODIMM
Graphics
  • Chipset
  • Graphic Engine
  • VGA
  • HDMI
  • Dual Display
  • Intel Atom N2600/D2550
  • Intel Atom N2600/D2550
  • DirectX 9 and OpenGL3.0 support Hardware decode H/W acceleration: MPEG2 H/W Decode/Acceleration: H.264/VC1/WMV9
  • DirectX 9 and OpenGL3.0 support Hardware decode H/W acceleration: MPEG2 H/W Decode/Acceleration: H.264/VC1/WMV9
  • Up to 1920 x 1200
  • Up to 1920 x 1200
  • Supports 1920 x 1200, Max data rate: up to 1.65 Gb/s, Supports HDMI v1.3 Up to 1080p support
  • Supports 1920 x 1200, Max data rate: up to 1.65 Gb/s, Supports HDMI v1.3 Up to 1080p support
  • Yes, VGA + HDMI
  • Yes, VGA + HDMI
Ethernet
  • LAN1
  • LAN2
  • 10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan
  • 10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan
  • 10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan
  • 10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan
Audio
  • Interface
  • Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in
  • Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in
I/O Interface
  • Serial Port
  • USB Interface
  • 3 x RS-232 ports, 1 x RS-232/422/485 port with auto flow control
  • 3 x RS-232 ports, 1 x RS-232/422/485 port with auto flow control
  • 6 x USB ports, USB 2.0 Compliant
  • 6 x USB ports, USB 2.0 Compliant
Other
  • Digital IO
  • Watchdog Timer
  • 8-bits
  • 8-bits
  • 255 levels timer interval, setup by software
  • 255 levels timer interval, setup by software
Expansion
  • Mini PCIe
  • 1 x full size Mini PCIe with SIM holder
  • 1 x full size Mini PCIe with SIM holder
Storage
  • HDD
  • SSD
  • Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)
  • Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)
  • Supports one external CFast socket
  • Supports one external CFast socket
Software Support
  • Microsoft Windows
  • Linux
  • Windows 7 32bit, Windows 7 Embedded 32bit (XP Professional & XP Embedded support by project)
  • Windows 7, Windows 7 Embedded (XP Professional & XP Embedded support by project)
  • Ubuntu v12.04
  • Ubuntu v12.04
Power
  • Power Type
  • Input Voltage
  • Power Adaptor
  • Consumption
  • AT/ATX
  • AT/ATX
  • 12 VDC, ± 10%
  • 12 VDC, ± 10%
  • AC to DC, DC12 V/3 A, 36 W (Optional)
  • AC to DC, DC12 V/3 A, 36 W (Optional)
  • Typical 8.9 W, Max. 11 W (with Intel Atom D2550 at 1.8 GHz)
  • Typical 8.9 W, Max. 11 W (with Intel Atom D2550 at 1.8 GHz)
Mechanical
  • Construction
  • Mounting
  • Dimensions
  • Weight
  • Aluminum housing
  • Aluminum housing
  • Din-Rail mounting, Desk/wall-mounting, VESA mounting
  • Din-Rail mounting, Desk/wall-mounting, VESA mounting
  • 264.5 x 69.2 x 133.0 mm (10.41" x 2.72" x 5.24")
  • 264.5 x 69.2 x 133.0 mm (10.41" x 2.72" x 5.24")
  • 2.3 kg (5.07 lb)
  • 2.3 kg (5.07 lb)
Environment
  • Operating Temperature
  • Storage Temperature
  • Relative Humidity
  • Vibration during Operation
  • Shock During Operation
  • With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow
  • With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
  • With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
  • With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
  • With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration
  • With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration
Certification
  • EMC
  • Safety Certifications
  • CE/FCC Class A, CCC, BSMI
  • CE/FCC Class A, CCC, BSMI
  • UL, CCC, BSMI
  • UL, CCC, BSMI
501,02 € 501,02 € (ilma km-ta)

  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
ARK-2120L_DS(10.28.16)20161028133301[1].pdf

Manufacturer Part Number: ARK-2120L-S8A1E
Tootekood: EE-100-168-736

Spetsifikatsioon

Weight 4.63 kg
