| CPU Intel® Celeron™ Processor J1900 Quad Core 2.0 GHz SoC |
| Frequency 2.0 GHz (Up to 2.41 GHz w/ burst frequency enabled) |
| |
| BIOS AMI EFI 64 Mbit (Default BIOS is supported for 64-bit OS installation, BIOS for 32-bit OS is supported by project) |
| |
| |
| Socket 1 x 204-pin SO-DIMM |
| Chipset Intel® Atom SoC integrated |
| DirectX* 11.1, OGL 3.0, OCL 1.1, OGL ES 2.0 |
| Graphic Engine Encode: H264, MPEG2/4, VC1, WMV9 Decode: H264, MPEG2 |

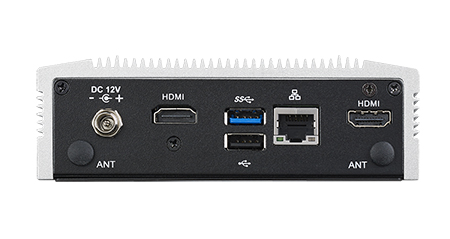

| HDMI 2 x Lockable HDMI connector, support up to 1920 x 1080 at 60Hz (2nd HDMI w/o audio function by Intel limitation) |
| Main System ALC-888S, High Definition Audio. Line-out & Line-in |
| LAN #1 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
LAN #2 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |

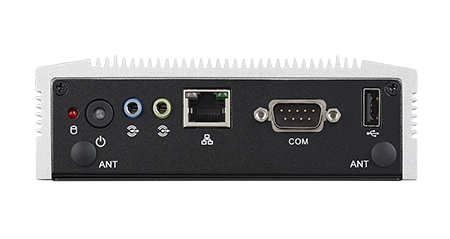

| Serial Ports 1 x RS-232/422/485 (BIOS selectable) |
USB Interface 2 x USB 2.0 & 1 x USB3.0 |
| Watchdog timer 255-level timer interval, setup by software |
| Mini PCIe 1 x Full-size Mini PCIe, support WLAN or WWAN module |
| 2.5" Drive Bay 1 x 2.5” SATA HDD Bay (Max Height 9.5mm) |
mSATA 1 x Half-size mPCIe (Suggest to assembly by CTOS or T-Part due to complex installation) |
| Microsoft Windows WES7, Windows 7, WE8S, Windows 8 and Windows 10 (32-bit support by project) |
Linux Support (by Project) |
| Power Input Voltage Single 12 VDC |
Power Adapter AC to DC, DC12 V/3 A, 36 W with threaded design |
| |
|
| Construction Aluminum housing |
| Mounting VESA/DIN Rail/Wall Mounting Kits (Optional) |

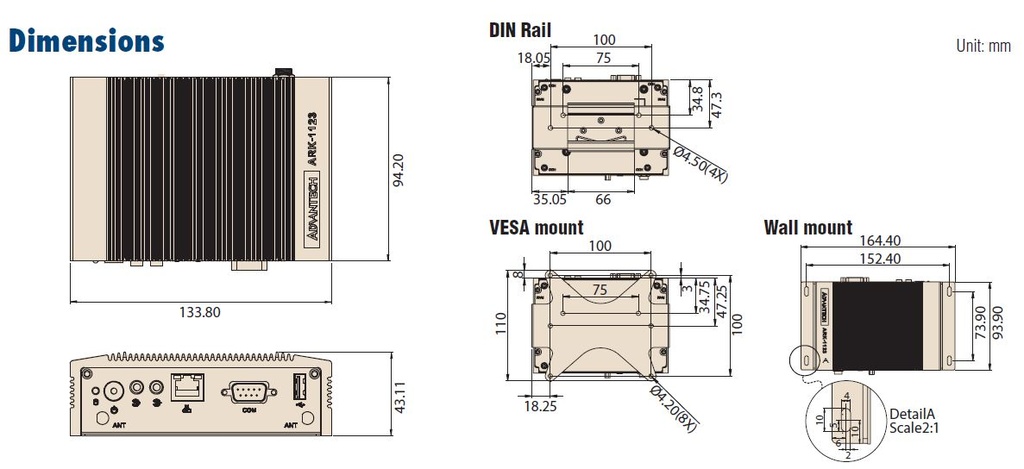

| Dimensions (W x H x D) 133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71") |
| |
| Operating Temperature With extended temperature SSD/mSATA/RAM : -20 ~ 60° C with 0.7m/s air flow |
|
