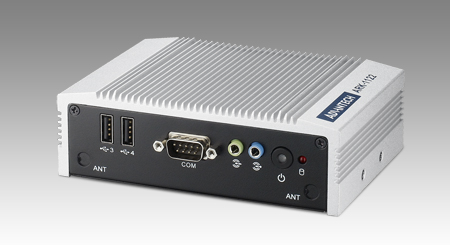

Tööstuslik arvuti: Intel Atom Dual Core N2600, 1.6 GHz, VGA/HDMI, DDR3 4GB, 4xUSB 2.0, 1xRS-232, 1xGB LAN, Windows 7 Pro 32bit

Processor
  • CPU
  • Core Number
  • L2 Cache
  • System Chipset
  • BIOS
  • Intel Atom Dual Core N2600 1.6 GHz
  • 2
  • 1 MB
  • Intel NM10
  • AMI EFI 16Mbit
Memory
  • Technology
  • Socket
  • DDR3 800 MHz up to 4 GB
  • 1 x 204-pin SO-DIMM
Graphics
  • Chipset
  • Interface
  • Intel Atom N2600
  • VGA (1920 x 1200); HDMI (1920 x 1200) with lockable design (please choose the lockable HDMI cable)
Ethernet
  • LAN
  • 1 x 10/100/1000 Mbps Intel 82583V GbE, supports wake on LAN
Audio
  • Chipset
  • Interface
  • Realtek ALC892, High Definition Audio (HD)
  • Line in, Line out
I/O Interface
  • Serial Port
  • USB Interface
  • 1 x RS-232
  • 4 x USB ports, USB2.0 Compliant
Others
  • Watchdog timer
  • 255 levels timer interval, setup by software
Expansion
  • Mini PCIe
  • 1 x half-size miniPCIe supports WIFI only
Storage
  • 2.5" HDD/SSD
  • mSATA
  • 1 x SATA II HDD Bay
  • 1 x full-size Mini PCIe slot, colay with USB signal
Software Support
  • Microsoft Windows
  • Windows 7 Pro 32bit, WES7 32bit, XP Embedded (XP Embedded by project support)
Power
  • Input Voltage
  • Connector Type
  • Power Adaptor
  • Consumption
  • 12 VDC, ± 10%
  • Lockable DC Jack
  • AC to DC, DC12 V/3 A, 36 W with lockable design
  • Typical 6.89 W, Max. 11.45 W
Mechanical
  • Construction
  • Mounting
  • Dimensions
  • Aluminum housing
  • Support VESA/DIN Rail/Wall mounting (Optional)
  • 133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71")
Environment
  • Operational Temperature
  • Storage Temperature
  • Relative Humidity
  • Vibration during Operation
  • Shock During Operation
  • With standard temperature HDD/SSD/mSATA devices: 0 ~ 40° C
    With extended temperature SSD/mSATA devices: -20 ~ 60° C
  • -40 ~ 85° C
  • 95% @ 40° C (non-condensing)
  • With SSD/mSATA: 3Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1hr/axis
  • With SSD/mSATA:30Grms, IEC 60068-2-27, half sine, 11ms duration
Certification
  • EMC
  • Safety Certifications
  • CE/FCC Class A, CCC, BSMI
  • CB, UL, CCC, BSMI
434,10 € 434,10 € (ilma km-ta)

  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
ARK-1122H_DS(07.25.17)20170817142920[1].pdf

Manufacturer Part Number: ARK-1122H-S6A1E
Tootekood: EE-100-168-728

Spetsifikatsioon

Weight 4.63 kg
