Tööstuslik arvuti: Intel Atom Dual Core N2800, 1.86 GHz, VGA/HDMI, DDR3 4GB, 3xUSB 2.0, 1xRS-232, 2xGB LAN,PCIe slot SIMi jaoks, Windows 7 Pro 32bit

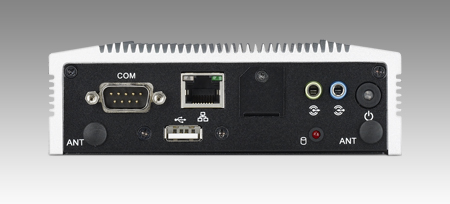

ARK-1122F-S8A1E_2

ARK-1122F-S8A1E_1

ARK-1122F-S8A1E_0

Tööstuslik arvuti: Intel Atom Dual Core N2800, 1.86 GHz, VGA/HDMI, DDR3 4GB, 3xUSB 2.0, 1xRS-232, 2xGB LAN,PCIe slot SIMi jaoks, Windows 7 Pro 32bit

Processor

CPU
Core Number
L2 Cache
System Chipset
BIOS

Intel Atom Dual Core N2800 1.86 GHz

2

1 MB

Intel NM10

AMI EFI 16Mbit

Memory

Technology
Socket

DDR3 1066 MHz up to 4 GB

1 x 204-pin SO-DIMM

Graphics

Chipset
Interface

Intel Atom N2800

VGA (1920 x 1200); HDMI (1920 x 1200) with lockable design (please choose the lockable HDMI cable)

Ethernet

LAN

2 x 10/100/1000 Mbps Intel 82583V GbE

Audio

Chipset
Interface

Realtek ALC892, High Definition Audio (HD)

Line in, Line out

I/O Interface

Serial Port
USB Interface

1 x RS-232

3 x USB ports, USB2.0 Compliant

Others

Watchdog timer

255 levels timer interval, setup by software

Expansion

Mini PCIe

1 x half-size Mini PCIe supports WIFI only; 1 x full-size Mini PCIe w/SIM Holder

Storage

mSATA

1 x full-size Mini PCIe slot (Suggest to assembly by CTOS or T-Part due to complex installation)

Software Support

Microsoft Windows

Windows 7 Pro 32bit, WES7 32bit, XP Embedded (XP Embedded by project support)

Power

Input Voltage
Connector Type
Power Adaptor
Consumption

12 VDC, ± 10%

Lockable DC Jack

AC to DC, DC12 V/3 A, 36 W with lockable design

Typical 7.84 W, Max. 13.15 W

Mechanical

Construction
Mounting
Dimensions

Aluminum housing

Support VESA/DIN Rail/Wall mounting (Optional)

133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71")

Environment

Operational Temperature
Storage Temperature
Relative Humidity
Vibration during Operation
Shock During Operation

With standard temperature mSATA devices: 0 ~ 40° C
With extended temperature mSATA devices: -20 ~ 60° C

-40 ~ 85° C

95% @ 40° C (non-condensing)

With mSATA: 3Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1hr/axis

With mSATA:30Grms, IEC 60068-2-27, half sine, 11ms duration

Certification

EMC
Safety Certifications

CE/FCC Class A, CCC, BSMI

CB, UL, CCC, BSMI

469,14 € (ilma km-ta)

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

ARK-1122F_DS(07.25.17)20170817142851[1].pdf

Manufacturer Part Number: ARK-1122F-S8A1E
Tootekood: EE-100-168-729

Spetsifikatsioon

Weight

4.63 kg
