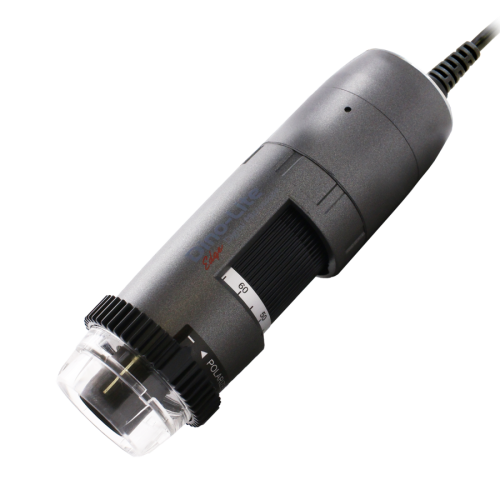

Dino-Lite Edge mudelid pakuvad ülimat pildikvaliteeti ja suurt paindlikkust tänu kohandatavale korgi disainile. Sisseehitatud reguleeritav polarisaator vähendab pidet ja peegeldust läikivatel objektidel.
See mudel suudab töötada kahe suurendusastmega, säilitades samal ajal sama tööulatuse, muutes selle ideaalseks mudeliks makrovaatlusrakendustes suurema vaatevälja ja suumimisfunktsiooniga väiksemate detailide nägemiseks. Mikroskoobiga on kaasas erinevad korgid, muutes Dino-Lite Edge'i ideaalseks valikuks igale professionaalsele rakendusele.
Samuti saadaval: AM4115TW - Edge ilma polarisaatorita
Lighting
Light/ LED typeWhite
Number of LEDs8
LED on/off switchable:Yes
Infrared filterIR cut-filter >650 nm
Diffuser availableYes (N3C-D included)
Emission filterNo
PolarizerYes, linear
Optics
Magnification10-50x
Macro zoomNee
Working distanceStandard
Lens typeGlass with anti-reflection coating
Sensor
Sensor typeCMOS
Resolution1.3 Megapixel (1280x1024)
Maximum frame rate30 fps
Compatibility
InterfaceUSB 2.0
Operating systemWindows 7, 8, 10 & 11, MacOS 10.9 and up
SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows)WMV, FLV, SWF
Supported image formats (MacOS)JPEG, PNG
Supported video formats (MacOS)MOV
Imaging standardsDirectShow, UVC
WifiWireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing materialComposite/ plastic housing
Magnification lockYes
Dimensions10.5cm (L) x 3.2cm (D)
Weight100g
Cable length1.8m
Features
Special featureMacro zoom
MeasurementYes
CalibrationYes
Microtouch sensorYes
ESD safeNo
Information
Package contentsMicroscope, carry pouch, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information2 years European warranty
Regulatory approvalCE, FCC, ROHS
