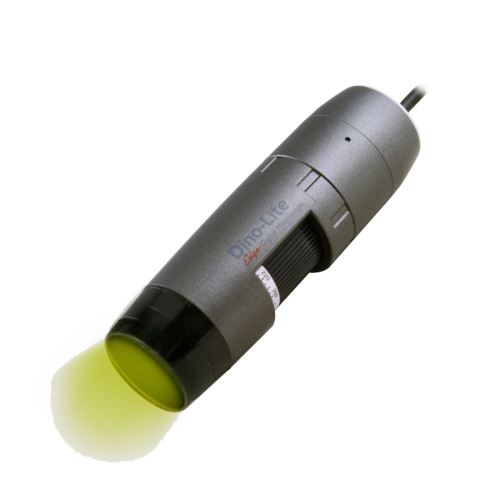

Dino-Lite AM4115T-GRFBY digitaalmikroskoop on optimeeritud uurimiseks ja fluorestseeruvate objektide vaatlemiseks, kasutades 480 nm ja 575 nm erutus-LED-sid. Sellel on 510 nm ja 610 nm emissioonifilter, mis on loodud laia spektri fluorestseeruvate ainete vaatlemiseks rakendustes arengubioloogias, patoloogias ja anatoomias.
AM4115T-GRFBY-l on võimalus vahetada valgusallikat 480 nm erutus-LED-idelt 575 nm LED-ile, mis on mugav kahe värviga värvitud fluorestsentsi jaoks. Kõik need tegurid muudavad AM4115T-GRFBY maailma väikseimaks fluorestsentsmikroskoobiks, mis sobib paljude rakenduste jaoks.
Lighting
Light/ LED type480nm excitation + 575nm excitation
Number of LEDs4 FL + 4 FL
LED on/off switchable:Yes
Infrared filterNo
Diffuser availableNo
Emission filter510nm & 610nm
PolarizerNo
FluorophoresGFP/FITC & TxRed/mCherry
Optics
Magnification20-220x
Macro zoomNo
Working distanceStandard
Lens typeGlass with anti-reflection coating
Sensor
Sensor typeCMOS
Resolution1.3 Megapixel (1280x1024)
Maximum frame rate30 fps
Compatibility
InterfaceUSB 2.0
Operating systemWindows 7, 8, 10 & 11, MacOS 10.9 and up
SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows)WMV, FLV, SWF
Supported image formats (MacOS)JPEG, PNG
Supported video formats (MacOS)MOV
Imaging standardsDirectShow, UVC
WifiWireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing materialComposite/ plastic housing
Magnification lockYes
Dimensions10.5cm (L) x 3.2cm (D)
Weight100g
Cable length1.8m
Features
Special featureNo
MeasurementYes
CalibrationYes
Microtouch sensorYes
ESD safeNo
Information
Package contentsMicroscope, carry pouch, calibration target, user manual
Warranty information2 years European warranty
Regulatory approvalCE, FCC, ROHS
