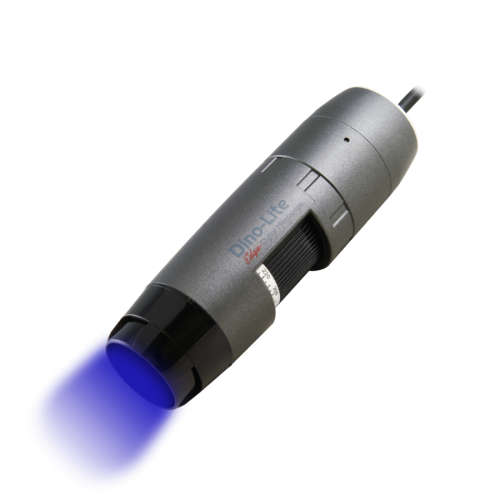

Dino-Lite AM4115T-GFBW digitaalmikroskoop on optimeeritud uurimiseks ja fluorestseeruvate objektide vaatlemiseks, kasutades 480 nm LED-sid. Sellel on 510 nm emissioonifilter, mis on loodud muu hulgas GFP (rohelise fluorestseeruva valgu) vaatlemiseks.

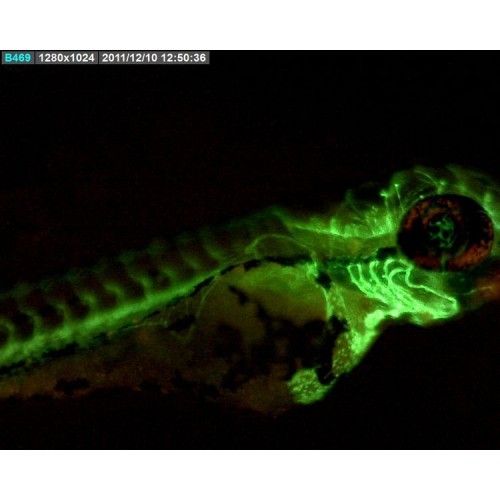

Võrreldes traditsioonilise fluorestsentsmikroskoobi ribalaiusega emissioonifiltriga pakub Dino-Lite'i pika lainepikkusega emissioonifilter nähtavust ja tundlikkust laiemas fluorestsentslainepikkuse vahemikus. Rohelised fluorestseeruvad objektid paistavad mikroskoobi all silma ja saate selgelt näha nende rohelist hõõgumist. AM4115T-GFBW-l on võimalus vahetada valgusallikat 480 nm erutus-LED-idest valgele LED-ile, mis on mugav objekti leidmiseks ja hõlpsa fookuse saamiseks.
Lighting
Light/ LED type480nm excitation + white
Number of LEDs7 FL + 1 White
LED on/off switchable:Yes
Infrared filterNo
Diffuser availableNo
Emission filter510nm, LP
PolarizerNo
FluorophoresGFP, FITC
Optics
Magnification20-220x
Macro zoomNo
Working distanceStandard
Lens typeGlass with anti-reflection coating
Sensor
Sensor typeCMOS
Resolution1.3 Megapixel (1280x1024)
Maximum frame rate30 fps
Compatibility
InterfaceUSB 2.0
Operating systemWindows 7, 8, 10 & 11, MacOS 10.9 and up
SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows)WMV, FLV, SWF
Supported image formats (MacOS)JPEG, PNG
Supported video formats (MacOS)MOV
Imaging standardsDirectShow, UVC
WifiWireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing materialComposite/ plastic housing
Magnification lockYes
Dimensions10.5cm (L) x 3.2cm (D)
Weight100g
Cable length1.8m
Features
Special featureNo
MeasurementYes
CalibrationYes
Microtouch sensorYes
ESD safeNo
Information
Package contentsMicroscope, carry pouch, calibration target, user manual
Warranty information2 years European warranty
Regulatory approvalCE, FCC, ROHS
