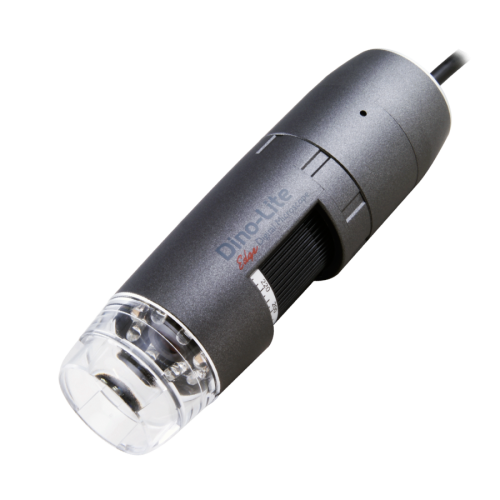

Dino-Lite Edge mudelid pakuvad suurepärast pildikvaliteeti ja paindlikkust tänu vahetatavatele korkidele. Mikroskoobi komplekti kuuluvad erinevad korgid, muutes Dino-Lite Edge'i ideaalseks valikuks igale professionaalile.
Lighting
Light/ LED typeWhite
Number of LEDs8
LED on/off switchable:Yes
Infrared filterIR cut-filter >650 nm
Diffuser availableYes (N3C-D included)
Emission filterNo
PolarizerNo
Optics
Magnification20-220x
Macro zoomNo
Working distanceStandard
Lens typeGlass with anti-reflection coating
Sensor
Sensor typeCMOS
Resolution1.3 Megapixel (1280x1024)
Maximum frame rate30 fps
Compatibility
InterfaceUSB 2.0
Operating systemWindows 7,8,10 & 11, MacOS 10.9 and up
SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows)WMV, FLV, SWF
Supported image formats (MacOS)JPEG, PNG
Supported video formats (MacOS)MOV
Imaging standardsDirectShow, UVC
WifiWireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing materialComposite/ plastic housing
Magnification lockYes
Dimensions10.5cm (L) x 3.2cm (D)
Weight105g
Cable length1.8m
Features
Special featureNo
MeasurementYes
CalibrationYes
Microtouch sensorYes
ESD safeNo
Information
Package contentsMicroscope, Carry pouch, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-E- extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information2 years European warranty
Regulatory approvalCE, FCC, ROHS
