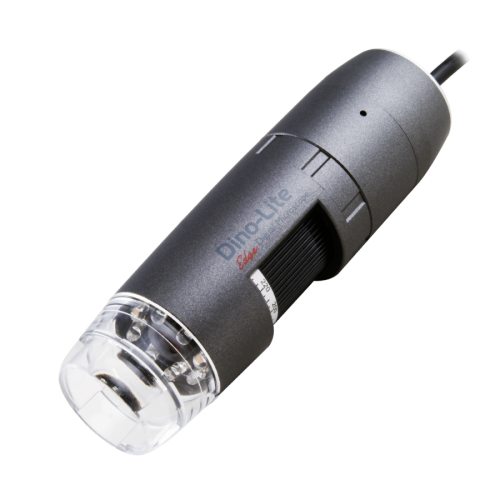

Dino-Lite AM4115-FIT mudelis on infrapunased LED-id, mis kiirgavad valgust umbes 850 nm lainepikkusel.
Dino-Lite AM4115-FIT-l on spetsiaalne valgustus LED-idega, mis kiirgavad UV valgust umbes 850 nm lainepikkusel. Dino-Lite Edge mudelid pakuvad ülimat pildikvaliteeti ja suurt paindlikkust tänu kohandatavale korki disainile.
Samuti saadaval ~780 nm või 940 nm LED-idega (mudel AM4115-FKT/FJT).
Lighting
Light/ LED type~850 nm Infrared
Number of LEDs8
LED on/off switchable:Yes
Infrared filterIR pass filter
Diffuser availableNo
Emission filterNo
PolarizerNo
Optics
Magnification20-220x
Macro zoomNo
Working distanceStandard
Lens typeGlass with anti-reflection coating
Sensor
Sensor typeCMOS
Resolution1.3 Megapixel (1280x1024)
Maximum frame rate30 fps
Compatibility
InterfaceUSB 2.0
Operating systemWindows 7, 8, 10 & 11, MacOS 10.9 and up
SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows)WMV, FLV, SWF
Supported image formats (MacOS)JPEG, PNG
Supported video formats (MacOS)MOV
Imaging standardsDirectShow, UVC
WifiWireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing materialComposite/ plastic housing
Magnification lockYes
Dimensions10.5cm (L) x 3.2cm (D)
Weight105g
Cable length1.8m
Features
Special featureNo
MeasurementYes
CalibrationYes
Microtouch sensorYes
ESD safeNo
Information
Package contentsMicroscope, carry pouch, calibration target, user manual
Warranty information2 years European warranty
Regulatory approvalCE, FCC, ROHS
