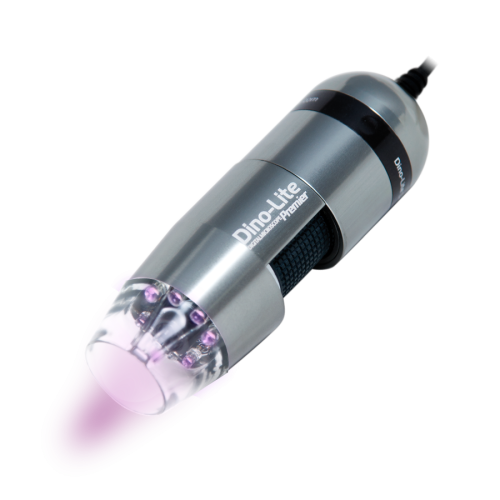

VW seerial on kahte tüüpi LED-lampe, mida saab vahetada valge ja UV valguse vahel. Sellel mudelil on pikk tööulatus ja filter tagasituleva UV-valguse filtreerimiseks, et saada loomulike värvidega pilt. Alumiiniumist korpus pakub paremat kaitset ja vastupidavust ning on parima välimuse ja tunnetusega.
Lighting
Light/ LED type395 nm UV + white
Number of LEDs4+4
LED on/off switchable:Yes
Infrared filterIR cut-filter >650 nm
Diffuser availableNo
Emission filterYes, UV cut filter
PolarizerNo
Optics
Magnification10-90x
Macro zoomNo
Working distanceLong
Lens typeGlass with anti-reflection coating
Sensor
Sensor typeCMOS
Resolution1.3 Megapixel (1280x1024)
Maximum frame rate30 fps
Compatibility
InterfaceUSB 2.0
Operating systemWindows 7, 8, 10 & 11, MacOS 10.9 and up
SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows)WMV, FLV, SWF
Supported image formats (MacOS)JPEG, PNG
Supported video formats (MacOS)MOV
Imaging standardsDirectShow, UVC
WifiWireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing materialMetal housing
Magnification lockNo
Dimensions10.5cm (L) x 3.2cm (D)
Weight140g
Cable length1.8m
Features
Special featureNo
MeasurementYes
CalibrationYes
Microtouch sensorYes
ESD safeYes
Information
Package contentsMicroscope, carry pouch, calibration target, user manual
Warranty information2 years European warranty
Regulatory approvalCE, FCC, ROHS
