KVMi pikendaja (2x DP, 2x USB-A, 2x 3.5mm, 1x DB9, 2x RJ45, 2x SFP+) kuni 4000m(saatja)

KVMi pikendaja (2x DP, 2x USB-A, 2x 3.5mm, 1x DB9, 2x RJ45, 2x SFP+) kuni 4000m(saatja)

Mechanical
Height	1.6 in. (40 mm.)
Width	8.5 in. (215 mm.)
Depth	8.3 in. (210 mm.)
Weight	1.8 lbs. (4 kg.)
Packing Box	Dimensions: (L) 285mm /11.2-inch (W) 245mm/9.6inch (D) 145mm/5.7inch Weight: 2.5kg / 5.5lb
Materials	Aluminium and steel construction
Environmental
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-10°C to 60°C (14°F to 140°F)
Storage and operating relative humidity	10-90% non-condensing
Altitude	< 3000m
Power
External power	12VDC, 5A
Typical power consumption	20W
BTU	68.24BTU/hr
Supported Hardware
Computers	DisplayPort
Peripherals	USB, Audio, Serial RS232
Max video resolution	Supports 4K UHD or 4K DCI (True Cinema 4K) and refresh rates to 60Hz
USB	4 ports of USB2.0 with USB True Emulation to support keyboard, mouse and touch. USB device seen as: 7 or 13 port hub
Audio	Analog Line in/out 2 channel 16bit 48KHz 1V RMS in / 1V RMS out
Ethernet	10GbE (No 10/100/1000 support)
Standards
Approved Agency	CE, FCC
Connections

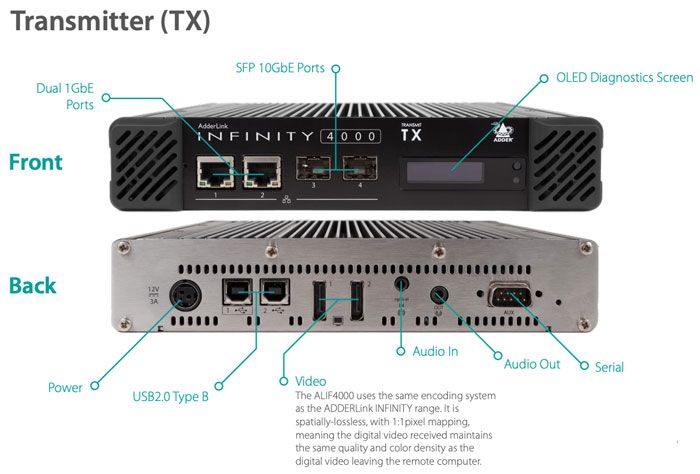

Transmitter Connections	Computer: 2x DisplayPort, 2x USB type B, 2x 3.5mm audio jack sockets, 1x DB9 socket. Ethernet: 2x 8p8c (RJ45), 2x SFP+ cages. Power: 3 pin Kycon socket.

1 826,67 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: ALIF4021T
Tootekood: EE-100-168-594

Spetsifikatsioon

Weight

2.45 kg
