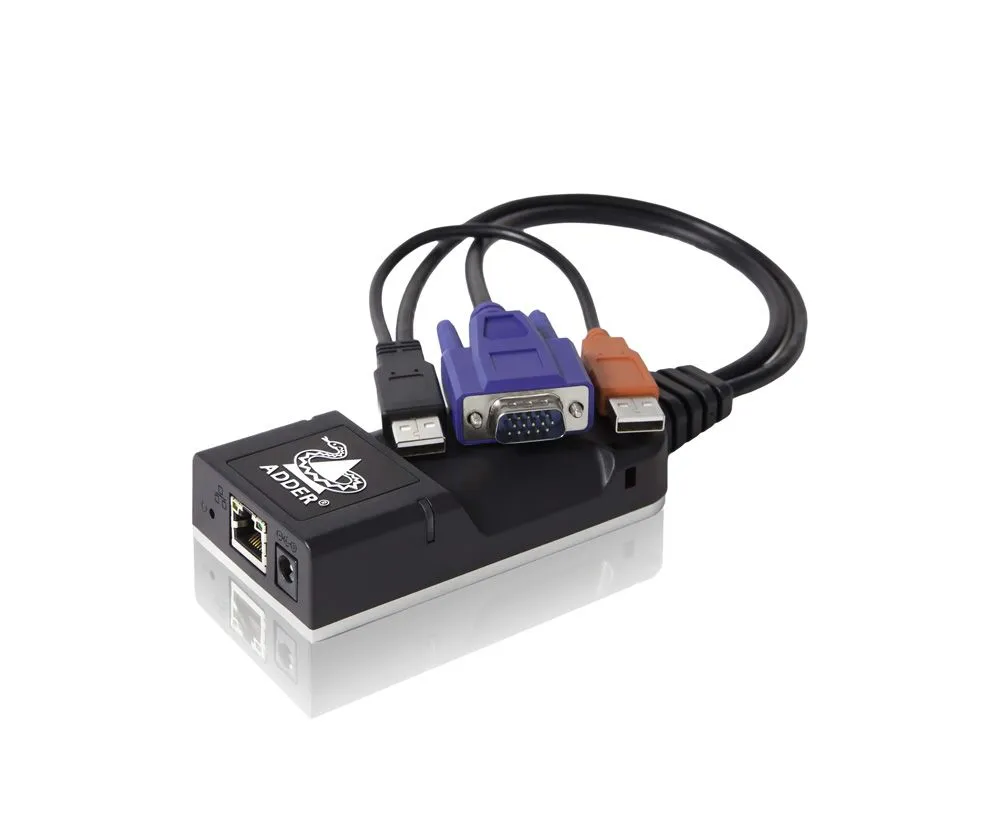

KVMi pikendaja läbi CATx kuni 100m, RJ45, VGA, USB (ALIF1002)

Adder ALIF100T-VGA Specifications

Mechanical
Length	4.3 in. (110 mm.)
Width	2.17 in. (55 mm.)
Depth	1.0 in. (25 mm.)
Weight	0.4 lbs. (0.2 kg.)
Construction	ABS and aluminium construction
Environmental
Operating Temperature	0 to 50°C / 32 to 122°F.
Storage Temperature	-10 to 60°C / 14 to 140°F.
Operating / Storage Relative Humidity	10-90% non-condensing
Altitude	< 9850ft (3000m)
Power
USB Power	2 x USB 2.0 (2x 500mA @5V) 5W
External Power (optional)	5VDC, 1A
Typical power consumption	3W
BTU / hr	10.2 BTU/hr
Feature Specification
USB	USB2.0 full and low speed (No HS support)
USB features	Keyboard, mouse and touch
USB device seen as	7 or 13 port hub
Max video resolution	Up to 1920x1200@60Hz
Audio	Line in/out USB audio 2 channel 16bit 48KHz
Ethernet	1GbE (No 10/100 support)
Cable length rules	Ethernet specifications rules apply 330 feet (100 meters) maximum run
Peripheral connections	Computer: 1 x VGA, 2 x USB type A, Ethernet: 1 x 8p8c (RJ45) for AdderLink Infinity network connections Power: 2.5mm socket
Compatibility	All computers with VGA, USB, Cat5e and above - requirement dependent.
Regulation Approval	CE, FCC

868,94 € (ilma km-ta)

Weight
- 0.15 kg
- 1.1 kg

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: ALIF100T-VGA
Tootekood: EE-100-168-568

Spetsifikatsioon

Weight

0.15 kg, 1.1 kg
