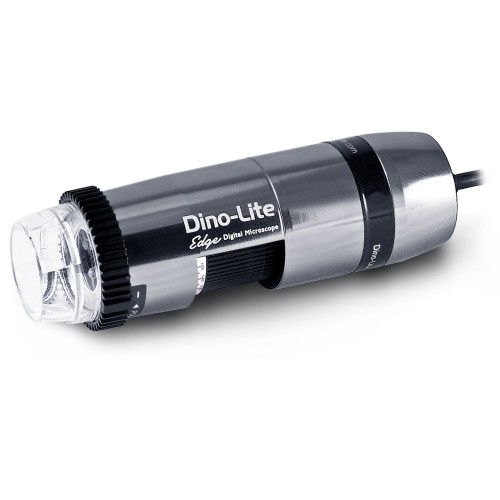

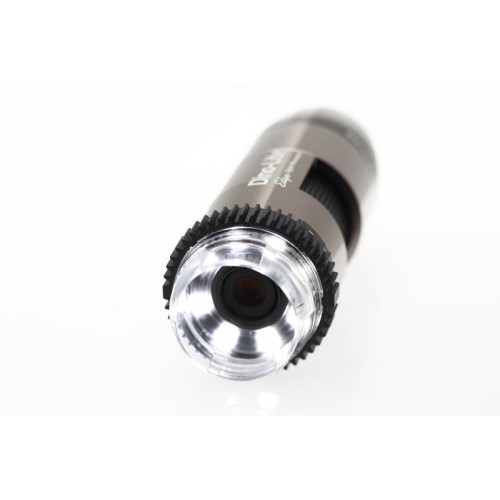

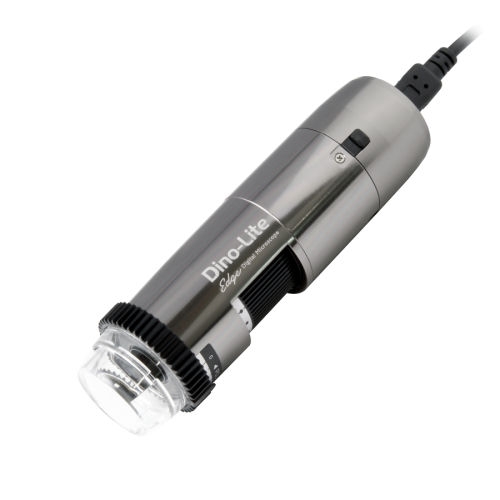

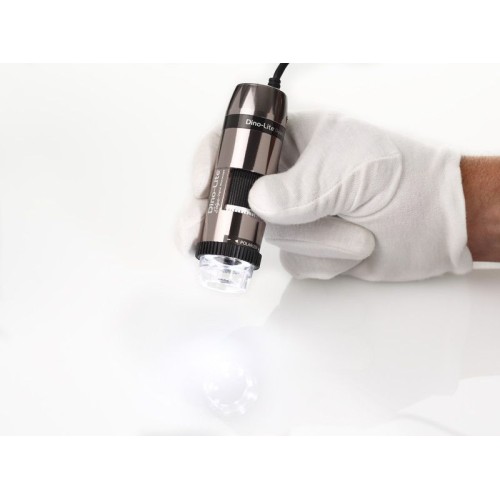

5MP Edge AF515MZT4 pakub suurepärase värviedastusega kvaliteetseid pilte 400x suurendusel. Sisseehitatud polarisaatori ja FLC-ga on AF7515MZT4 mitmekülgne tööriist laia valiku ülesannete jaoks, sealhulgas väikeste defektide, servateravuse ja pinnakareduse vaatlemiseks. AF7515MZT4 sisaldab AMR-i mõõtmise hõlbustamiseks ning on ühilduv ka valikulise WF-20 Wi-Fi voogesitusega.
AF7515MZT - Edge peamised omadused:
5 megapiksline Edge sensor
Kõrge optiline eraldusvõime
Automaatne suurenduse lugemine
Reguleeritav polarisaator
Vastupidav metallkorpus
Paindlik LED-juhtimine (FLC)
Kohandatav liides
Ja palju muud...
Lighting
Light/ LED typeWhite
Number of LEDs8
LED on/off switchable:Yes
Diffuser availableYes (N3C-D included)
Emission filterNo
PolarizerYes, linear
Optics
Magnification400x ~ 470x
Macro zoomNo
Working distanceStandard
Lens typeGlass with anti-reflection coating
Sensor
Sensor typeCMOS
Resolution5 Megapixel (2592x1944)
Maximum frame rate30 fps
Compatibility
InterfaceUSB 2.0
Operating systemWindows 7, 8, 10 & 11, MacOS 10.14 and up
SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows)WMV, FLV, SWF
Supported image formats (MacOS)JPEG, PNG
Supported video formats (MacOS)MOV (max 1.3MP)
Imaging standardsDirectShow, UVC
WifiWireless-ready, requires the WF-20 WiFi streamer (optional)
Housing
Housing materialMetal housing
Magnification lockYes
Dimensions11.5 cm (H) x 3.4 cm (D)
Weight97g
Cable length1.8m
Features
Special featureFlexible LED Control (FLC)
MeasurementYes
CalibrationYes
Microtouch sensorYes
ESD safeYes
Information
Package contentsMicroscope, carry pouch, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-E- extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information2 years European warranty
Regulatory approvalCE, FCC, ROHS
