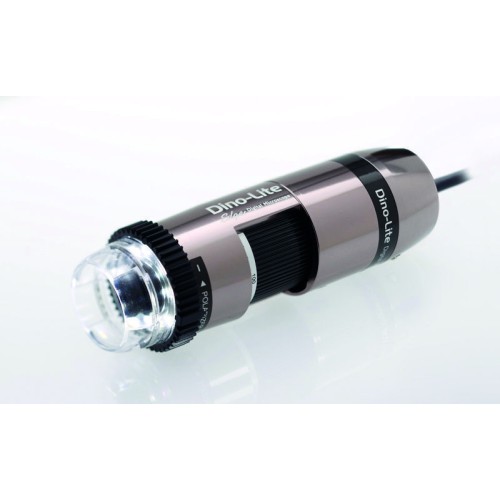

5MP Edge AM7115MZTW pakub makrotasemel pildistamist suumimisvõimalustega. Sellel mikroskoobil on polarisaator peegelduste vähendamiseks ja FLC reguleeritava valgustuse jaoks. AF7115MZTW on ühilduv valikulise WF-20 Wi-Fi voogedastusseadmega.
AM7115MZTW - Edge peamised omadused on:
5 megapiksline sensor
Makrosuum optika
Reguleeritav polarisaator
Vastupidav metallkorpus

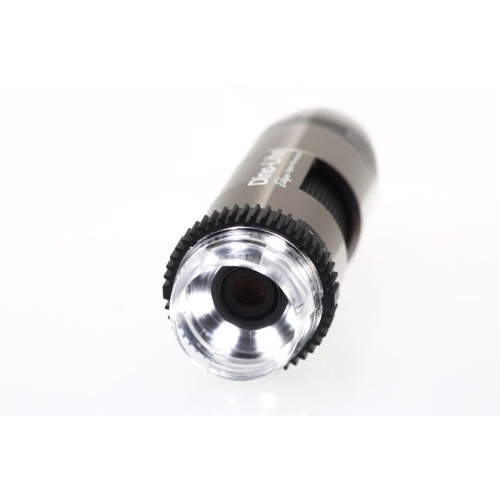

Paindlik LED-juhtimine (FLC)
Kõrge optiline eraldusvõime
Kohandatav liides
Ja palju muud...
Lighting
Light/ LED typeWhite
Number of LEDs8
LED on/off switchable:Yes
Diffuser availableYes (N3C-D included)
Emission filterNo
PolarizerYes, linear
Optics
Magnification10x ~ 50x
Macro zoomNo
Working distanceStandard
Lens typeGlass with anti-reflection coating
Sensor
Sensor typeCMOS
Resolution5 Megapixel (2592x1944)
Maximum frame rate30 fps
Compatibility
InterfaceUSB 2.0
Operating systemWindows 7, 8, 10 & 11, MacOS 10.14 and up
SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows)BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
Supported video formats (Windows)WMV, FLV, SWF
Supported image formats (MacOS)JPEG, PNG
Supported video formats (MacOS)MOV (max 1.3MP)
Imaging standardsDirectShow, UVC
WifiWireless-ready, requires the WF-20 adapter (optional)
Housing
Housing materialMetal housing
Magnification lockYes
Dimensions15 mm (H) x 34 mm (D)
Weight97g
Cable length1.8m
Features
Special featureFlexible LED Control (FLC)
MeasurementYes
CalibrationYes
Microtouch sensorYes
ESD safeYes
Information
Package contentsMicroscope, carry pouch, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-E- extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information2 years European warranty
Regulatory approvalCE, FCC, ROHS
