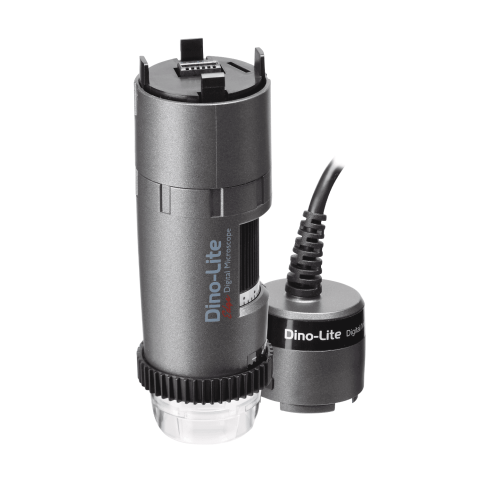

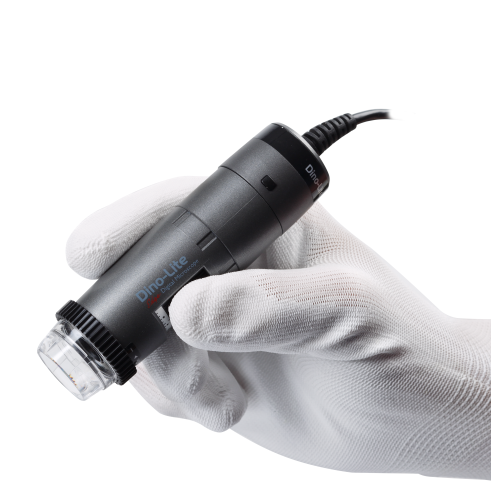

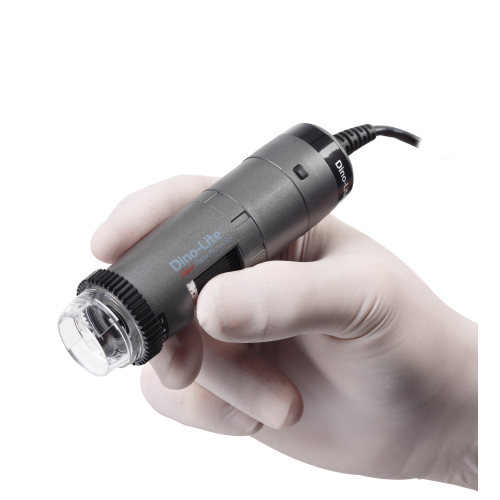

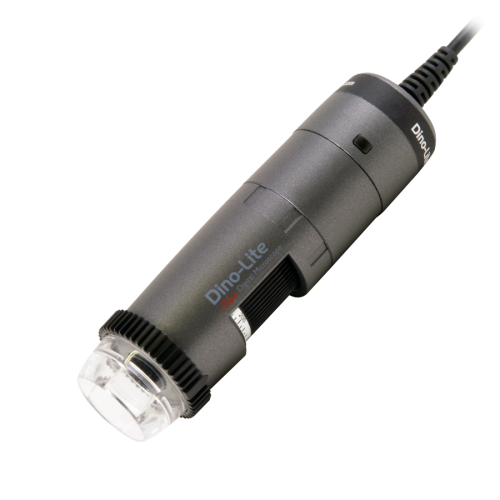

Dino-Lite AF4135ZTLE kuulub pika töövahemaa (LWD) seeriasse ja ühendub teie seadmega USB kaudu. AF4135ZTLE on juhtmevaba valmidusega, kuid nõuab (valikuliselt) WF-20 adapterit, et saada täielikult juhtmevaba lahendus.
Võrreldes AM4x15 seeriaga pakub AF4x35 seeria sarnast töövahemaad, kuid saavutab kõrgemad suurendused võrreldes AM4x15 seeriaga.
AF4135ZTLE on varustatud sellise lisavarustusega nagu paindlik LED-valgustuse kontroll (FLC), integreeritud polarisaator, laialdased mõõtmisfunktsioonid.
AF4135ZTLE peamised omadused:
Juhtmevaba valmidus, nõuab WF-20 adapterit (valikuline)
10x~200x suurendus
1.3 Megapixel Edge sensor
Integreeritud polarisaator (peegeldusvastane)
Laialdased mõõtmisfunktsioonid
Paindlik LED-valgustuse kontroll (FLC)
Ja veel...
Lighting
Light/ LED typeWhite
Number of LEDs8
LED on/off switchable:Yes
Infrared filterIR cut-filter >650 nm
Diffuser availableYes (N3C-D included)
Emission filterNo
PolarizerYes, linear
Optics
Magnification10x~200x
Macro zoomNo
Working distanceLong
Lens typeGlass with anti-reflection coating
Sensor
Sensor typeCMOS
Resolution1.3 Megapixel (1280x1024)
Maximum frame rate30 fps
Compatibility
InterfaceUSB 2.0
Operating systemWindows 7, 8, 10 & 11, MacOS 10.12 and up
SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows)WMV, FLV, SWF
Supported image formats (MacOS)JPEG, PNG
Supported video formats (MacOS)MOV
Imaging standardsDirectShow, UVC
WifiWireless-ready, requires the WF-20 adapter (optional)
Housing
Housing materialComposite/ plastic housing
Magnification lockYes
Dimensions11.4cm (L) x 3.3cm (D)
Weight111g
Cable length1.8m
Features
Special featureFlexible LED Control (FLC)
MeasurementYes
CalibrationYes
Microtouch sensorYes
ESD safeNo
Information
Package contentsMicroscope, carry pouch, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information2 years European warranty
Regulatory approvalCE, FCC, ROHS
