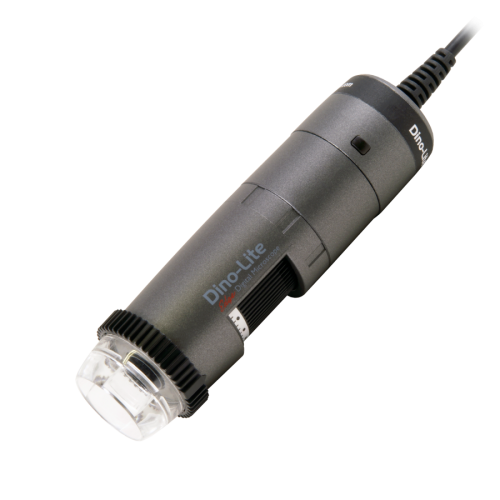

Dino-Lite AF4115ZT kuulub universaalse seeria hulka ja ühendub teie seadmega USB kaudu. AF4115ZT on juhtmevaba võimalusega, kuid nõuab täielikuks juhtmevabaks lahenduseks (valikulist) WF-20 adapterit.
AF4115ZT on varustatud tipptasemel funktsioonidega nagu paindlik LED-juhtimine (FLC), integreeritud polarisaator ja ulatuslikud mõõtmise võimalused.
AF4115ZT peamised omadused on:
Juhtmevaba võimalus, nõuab WF-20 adapterit (valikuline)
Suurendus 20-220x
1,3 megapiksline Edge sensor
Reguleeritav polarisaator
Paindlik LED-juhtimine (FLC)
Ja palju muud...
Lighting
Light/ LED typeWhite
Number of LEDs8
LED on/off switchable:Yes
Infrared filterIR cut-filter >650 nm
Diffuser availableYes (N3C-D included)
Emission filterNo
PolarizerYes, linear
Optics
Magnification20-220x
Macro zoomNo
Working distanceStandard
Lens typeGlass with anti-reflection coating
Sensor
Sensor typeCMOS
Resolution1.3 Megapixel (1280x1024)
Maximum frame rate30 fps
Compatibility
InterfaceUSB 2.0
Operating systemWindows 7, 8, 10 & 11, MacOS 10.12 and up
SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows)WMV, FLV, SWF
Supported image formats (MacOS)JPEG, PNG
Supported video formats (MacOS)MOV
Imaging standardsDirectShow, UVC
WifiWireless-ready, requires the WF-20 adapter (optional)
Housing
Housing materialComposite/ plastic housing
Dimensions11.4cm (L) x 3.3cm (D)
Weight111g
Cable length1.8m
Features
Special featureFlexible LED Control (FLC)
MeasurementYes
CalibrationYes
Microtouch sensorYes
ESD safeNo
Information
Package contentsMicroscope, Carry pouch, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-E- extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information2 years European warranty
Regulatory approvalCE, FCC, ROHS
