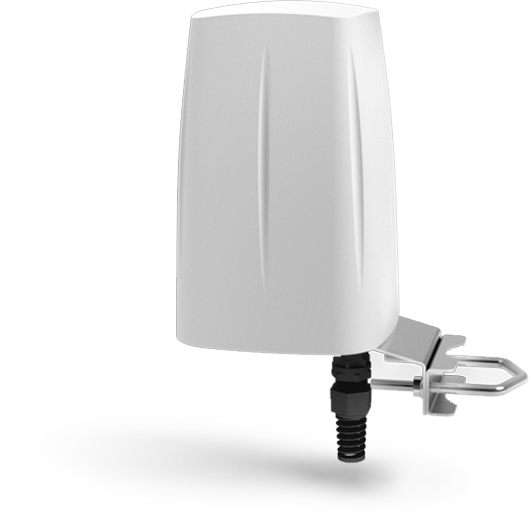

QuSpot omni LTE antenna for Teltonika TRB140e router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. If you use TRB140e with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
All antennas and Teltonika router integrated in one enclosure
Outdoor antenna works in any weather conditions, IP67
Antenna perfectly matched with the router
Passive PoE support
|
LTE ANTENNA SPECIFICATION |
|---|
FREQUENCY
Supported LTE bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85 |
0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz |
|---|
|
GAIN |
0.694 - 0.96 GHz : 2 dBi
1.7 - 2.2 GHz : 2 dBi
2.2 - 2.7 GHz : 4 dBi |
|---|
|
VSWR |
<1.60, max <2.00 |
|---|
|
BEAMWIDTH |
360°/35° ±5° |
|---|
|
POLARIZATION |
Vertical |
|---|
|
IMPEDANCE |
50 Ω |
|---|
|
MECHANICAL SPECIFICATION |
|---|
|
MATERIALS |
ABS, aluminum, PTFE |
|---|
|
INGRESS PROTECTION |
IP67 |
|---|
|
DIMENSIONS |
160 x 160 x 240 mm
6.3 x 6.3 x 9.45 inch |
|---|
|
WEIGHT |
1.5 kg
3.31 lbs |
|---|
|
OPERATING TEMPERATURE |
From -40°C to 75°C
From -40°F to 167°F |
|---|
