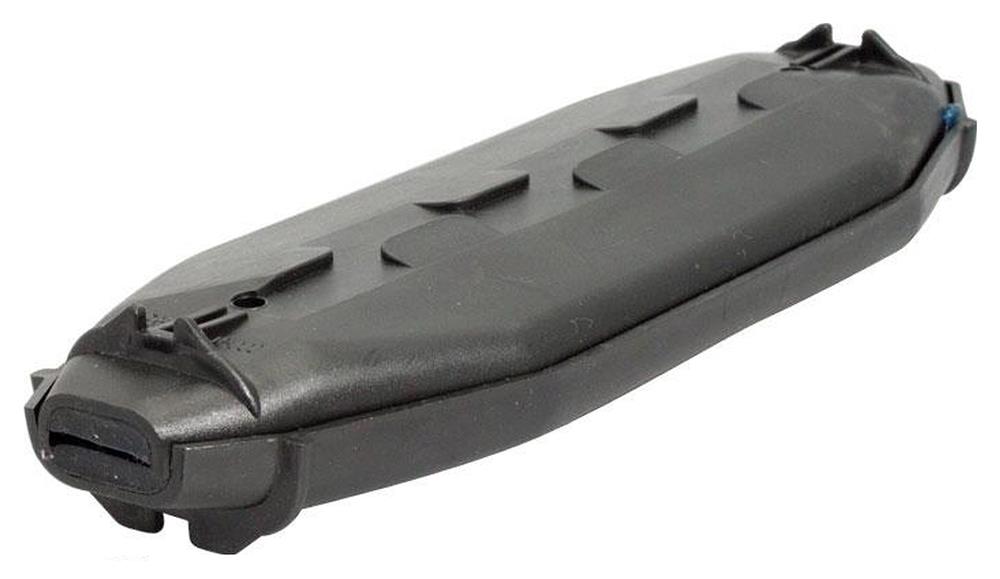

Vase jätkumuhv GELSNAP-B-14/5-130-SF max 10 paari

Product Classification
Product Type	Gel filled closure
Product Series	GELSNAP
Regional Availability	EMEA

General Specifications
Color	Black
Includes	Gel compression springs \| Gel-filled half-shells \| Installation instruction \| Strain relief accessories \| Tie wraps
Package, quantity	1
Packaging Type	Bag \| Carton
Single Cable Diameter, maximum	14.00 mm \| 0.55 in
Single Cable Diameter, minimum	5.00 mm \| 0.20 in
Splicing Capacity, maximum	10

Dimensions
Height	33.00 mm \| 1.30 in
Length	290.00 mm \| 11.42 in
Sheet Opening, nominal	130.00 mm \| 5.12 in
Width	80.00 mm \| 3.15 in

Dimension Drawing

Dimension Drawing	Used as an image placeholder

Mechanical Specifications
Cable Sealing Type	Gel filled
Closure Style	In-line \| Single-ended

Environmental Specifications
Environmental Space	Aerial \| Buried

46,58 € (ilma km-ta)

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

GELSNAP-Splice-Closure-322451EU.pdf commscope.pdf

Manufacturer Part Number: 940535-000
Tootekood: EE-100-173-800

Weight

0.48 kg
