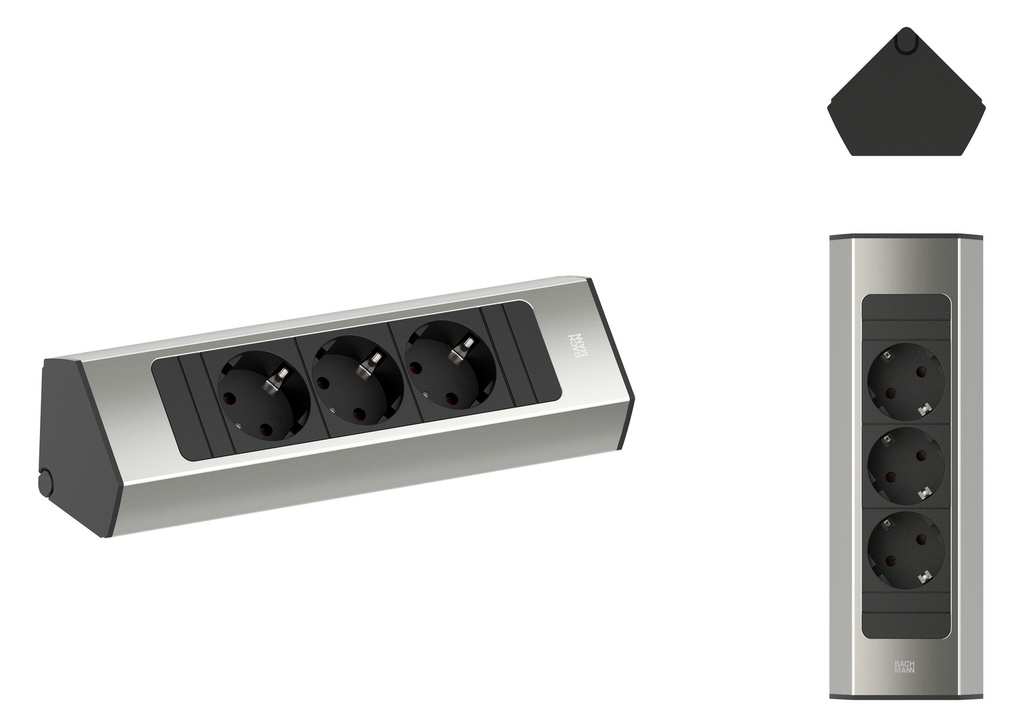

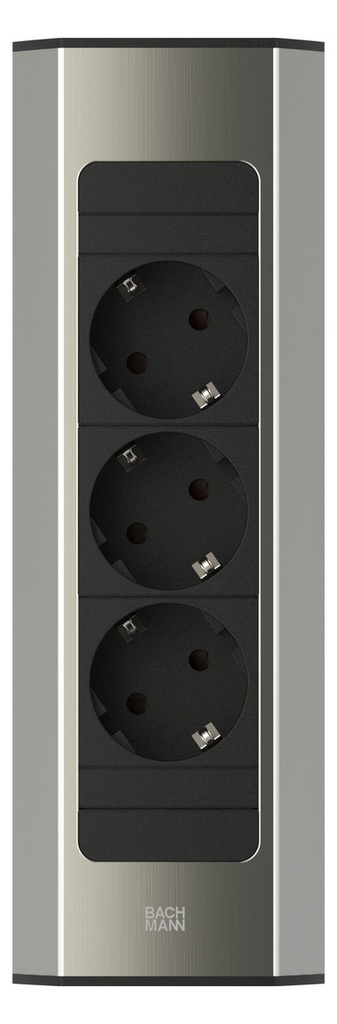

CASIA
Pistikupesa riba seinale ja nurkadesse paigaldamiseks
Alumiiniumprofiil roostevabast terasest välimusega
Ümberühendatav,
1xUSB topeltlaadija 5V DC / 3.1A
1x kiiklüliti,
4x must pistikupesa maanduskontaktiga, 35°
kõrgendatud puutetundliku kaitsega
Toitekaabel 2,0m H05VV-F 3G1,5mm²
maanduskontakti paigalduspistik must,
pakitud pappkarpi
koos POS-muhviga 923.008 jaoks.
ETIM 9.0: Desk connecting unit (EC002759)
ModelSurface mounting
FoldingNo
ExtendableNo
ShapeOther
MaterialAluminium
ColourStainless steel

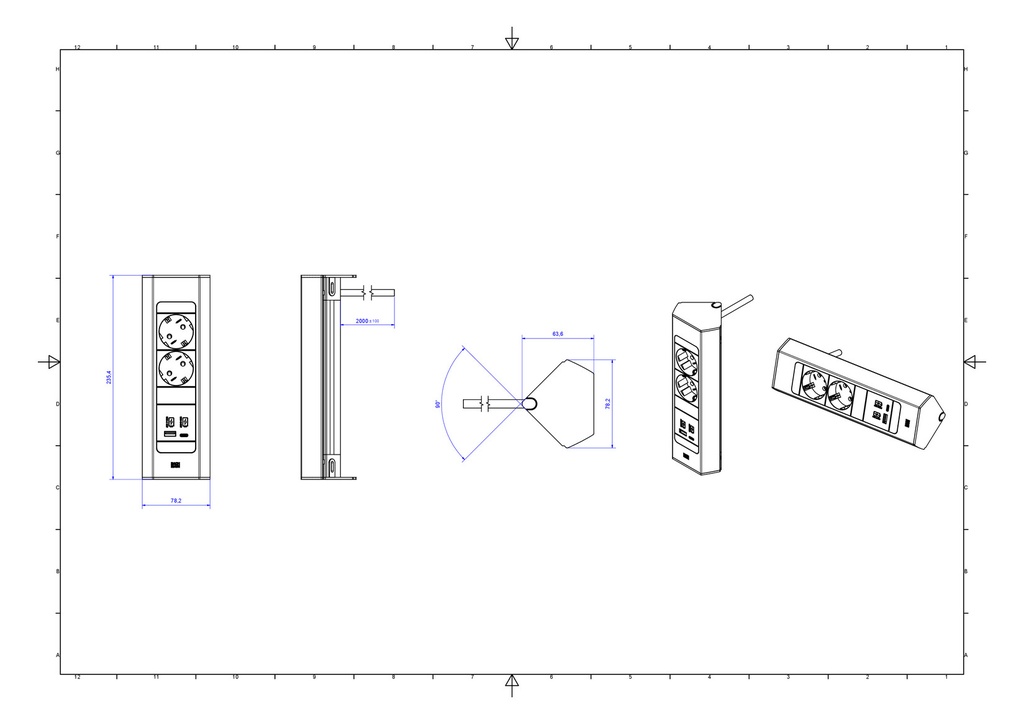

Length235.4 mm
Width78.2 mm
Height63.6 mm
Number of socket outlets with protective contact CEE 7/3 (type F)3
Number of socket outlets British Standard BS13630
Number of socket outlets Swiss standard type 130
Number of socket outlets Swiss standard type 150
Number of socket outlets Swiss standard type 230
Number of socket outlets Swiss standard type 250
Number of socket outlets French standard type E0
Number of HDMI-connections0
Number of D-Sub sockets 15-pole0
Number of USB connections0
Number of audio connections0
Number of CAT 5E connections0
Number of CAT 6 connections0
Number of CAT 6A connections0
Number of empty module positions0
Number of miniature circuit breakers (MCB)0
Over voltage protectionNo
Nominal voltage250 V
Degree of protection (IP)IP20
Operating temperature5 - 35 °C
