This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors.
Specification
Connector: 1 x N plug
Frequency range: 868 MHz
Antenna gain: 2.09 dBi
Impedance: 50 Ohm
Efficiency: 64.05 %

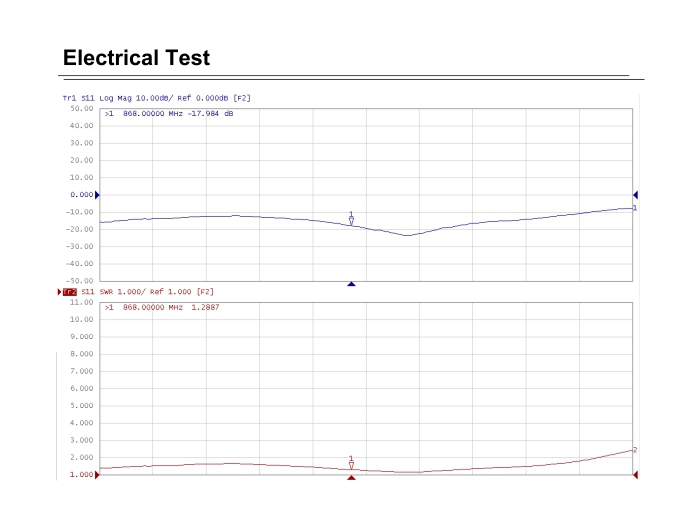

VSWR: 2.5
Polarisation: vertical
Antenna type: rod antenna
Operating temperature: -40 °C ~ 70 °C
Housing material: ABS
Colour: white
Dimensions (LxD): ca. 187 x 23 mm
Thread diameter: ca. 20 mm
System requirements
Device with a free N jack
Package content
Antenna
Suitable for indoor• yes
Suitable for outdoor• yes
Interface
connector• 1 x N male
Technical characteristics
Frequency range• 868 MHz
Antenna gain• 2.09 dBi
Impedance• 50 Ω
Operating temperature• -40 °C ~ 70 °C
VSWR• 2.5

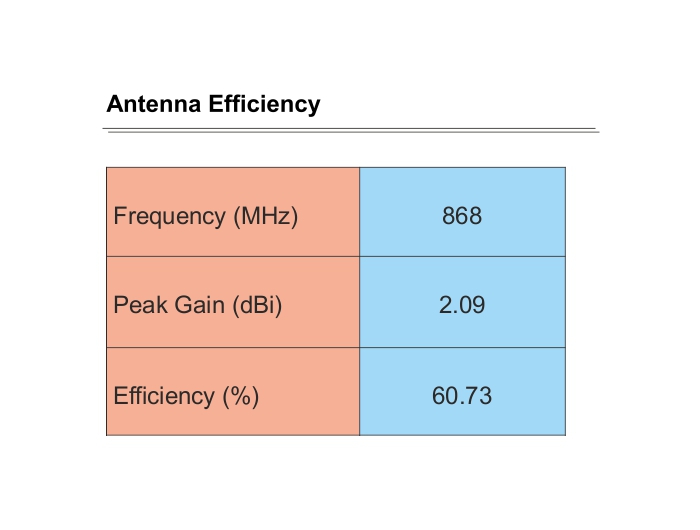

Efficiency• 60.73 %
Physical characteristics
Antenna type• Rod antenna
Housing material• ABS
Diameter• 22.8 mm
Length• 187 mm
Diameter connector• 20 mm
Colour• white
