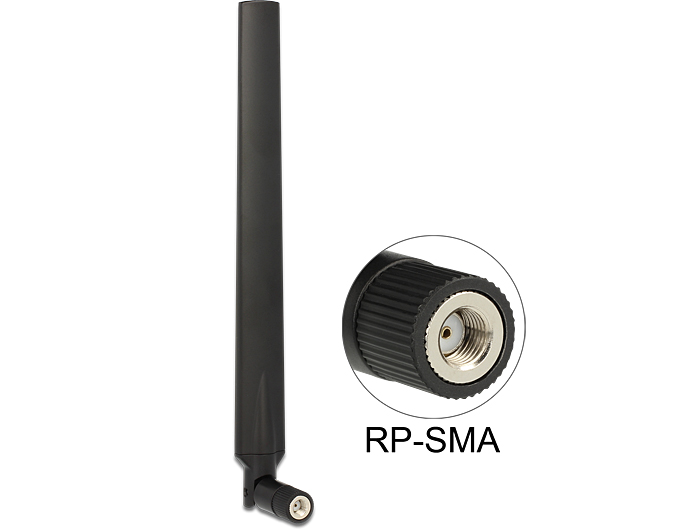

This Wireless LAN antenna can be connected to a WLAN device with RP-SMA interface, in order to send and receive signals.
Specification
• Connector: RP-SMA plug
• Frequency range:
2.400 - 2.500 GHz
5.150 - 5.875 GHz
• Antenna gain:
5 dBi @ 2.400 - 2.500 GHz
7 dBi @ 5.150 - 5.875 GHz
• Impedance: 50 Ohm
• Polarisation: linear, vertical

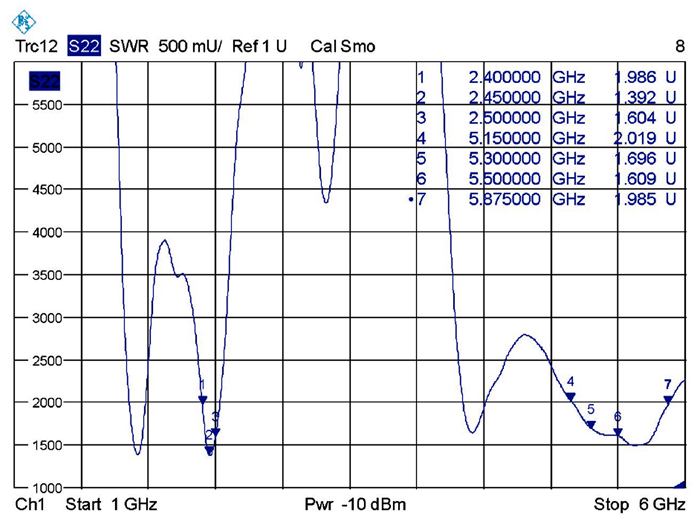

• VSWR: 2.0
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black

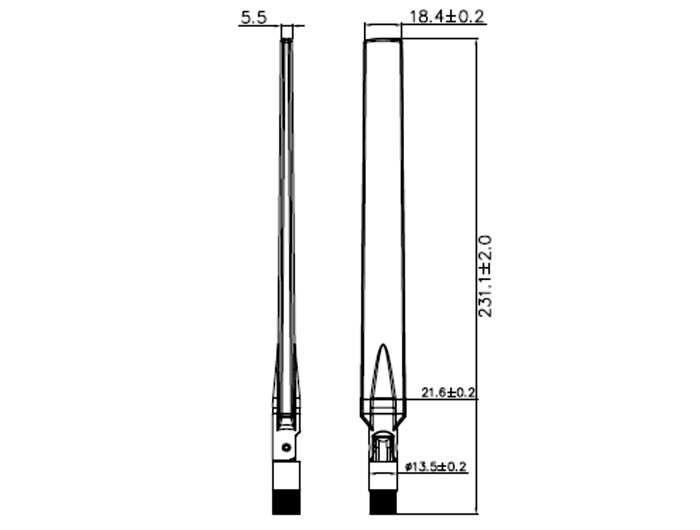

• Length:
ca. 231.10 mm (with tilt joint)
ca. 205.00 mm (without tilt joint)
• Diameter:
ca. 18.40 mm (top)
ca. 13.15 mm (RP-SMA)
System requirements
• Device with a free RP-SMA jack
Package content
• WLAN antenna
Technical characteristics
Frequency range
2.400 - 2.500 GHz
5.150 - 5.875 GHz
Gain
5 dBi @ 2.400 - 2.500 GHz
7 dBi @ 5.150 - 5.875 GHz
Operating temperature
-10 °C ~ 55 °C
Polarisation
linear vertical
Physical characteristics
Diameter connector
13.15 mm
Length with tilt joint
231.10 mm
Length without tilt joint
205.00 mm
