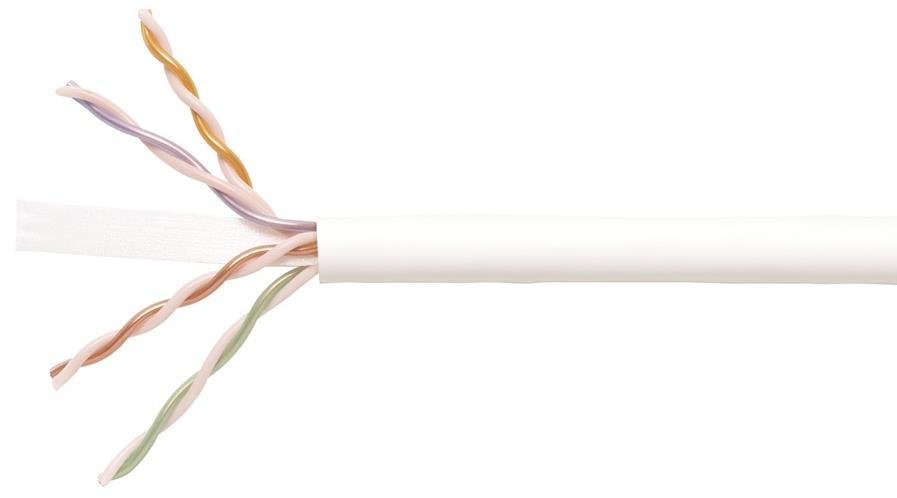

Keerdpaarkaabel Cat6 UTP 4x2x0,5 ühekiuline 24AWG LSZH Dca valge 305m/kast

Product Classification
Portfolio	NETCONNECT®
Product Type	Twisted pair cable
Regional Availability	EMEA
Standards And Qualifications
EN50575 CPR Cable EuroClass	Dca | s2 | d2 | a1
Cross Section Drawing
Click on image below to enlarge.
Construction Materials
Jacket Material	Low Smoke Zero Halogen (LSZH)
Conductor Material	Bare copper
Insulation Material	Polyolefin
Separator Material	Polyolefin
Dimensions
Cable Length	305 m | 1000 ft
Cable Weight	19.10 lb/kft
Diameter Over Jacket	5.715 mm | 0.225 in
Jacket Thickness	0.559 mm | 0.022 in
Electrical Specifications
ANSI/TIA Category	6
Characteristic Impedance	100 ohm
dc Resistance Unbalance, maximum	5 %
dc Resistance, maximum	9.38 ohms/100 m
Delay Skew, maximum	24 ns
Mutual Capacitance	5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	69 %
Operating Frequency, maximum	250 MHz
Transmission Standards	ANSI/TIA-568-C.2
Safety Voltage Rating	300 V
Dielectric Strength, minimum	1500 Vac | 2500 Vdc
Note	All electrical transmission tests include swept frequency measurements
Environmental Specifications
Environmental Space	Low Smoke Zero Halogen (LSZH)
Smoke Test Method	IEC 61034-2
Acid Gas Test Method	IEC 60754-2
Flame Test Method	IEC 60332-3-22
Installation Temperature	0 °C to +60 °C (+32 °F to +140 °F)
Operating Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
General Specifications
Cable Type	U/UTP (unshielded)
Packaging Type	CommPak® box
Pairs, quantity	4
Cable Component Type	Horizontal
Jacket Color	White
Product Number	CS34Z3
Brand	NETCONNECT®
Conductor Gauge, singles	24 AWG
Conductor Type, singles	Solid
Conductors, quantity	8
Ordering Note	Available in Europe, Middle East, and Africa
Separator Type	Tape separator
Mechanical Specifications
Pulling Tension, maximum	11 kg | 25 lb

Regulatory Compliance/Certifications

Agency	Classification
RoHS 2011/65/EU	Compliant
ISO 9001:2008	Designed, manufactured and/or distributed under this quality management system
CENELEC	EN 50575 compliant, Declaration of Performance (DoP) available

0,39 € 0,39 € (ilma km-ta)

• Cable material class

  • Dca

• Cable shielding

  • UTP

• Cat cables category

  • Cat6

• Color

  • White

• Suitable for outside

  • Indoor only

• Weight

  • 0.039 kg

 Lisa ostukorvi

Add to compare Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

884032314_10_CS34Z3_WHT_C6_4_24_U_UTP_CPK_305M.pdf EN50575 DoP EuroClass Dca s2 d2 a1 (English).pdf

Manufacturer Part Number: 884032314/10
Tootekood: EE-100-169-581
