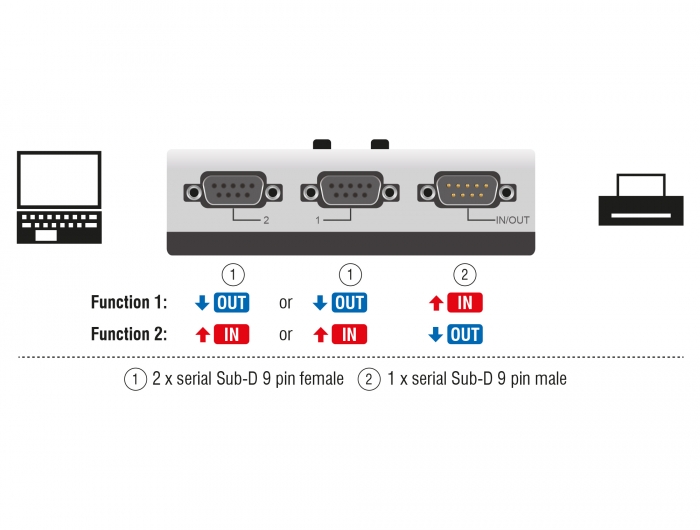

Delocki RS-232 / RS-422 / RS-485 switch on käsitsi juhitav kahesuunaline switch, mis võimaldab ühendada erinevaid seadmeid RS-232 / RS-422 / RS-485 portidega. Switchil on kaks erinevat kasutusvõimalust.
1. Seda saab ühendada kahe RS-232 / RS-422 / RS-485 portiga seadmega, nt arvuti või modem ühe RS-232 / RS-422 / RS-485 portiga.
2. Seda saab ühendada ühe seadmega, millel on RS-232 / RS-422 / RS-485 port, kahe RS-232 / RS-422 / RS-485 liiniga.
General
Mounting type
Wall mounting
Specification
RS-232 (EIA / TIA)
RS-422 / RS-485 (EIA / TIA)
Supported operating system
OS independent, no driver installation necessary
Switchover
2 x Umschalttaste für Gerät 1 oder Gerät 2
Interface

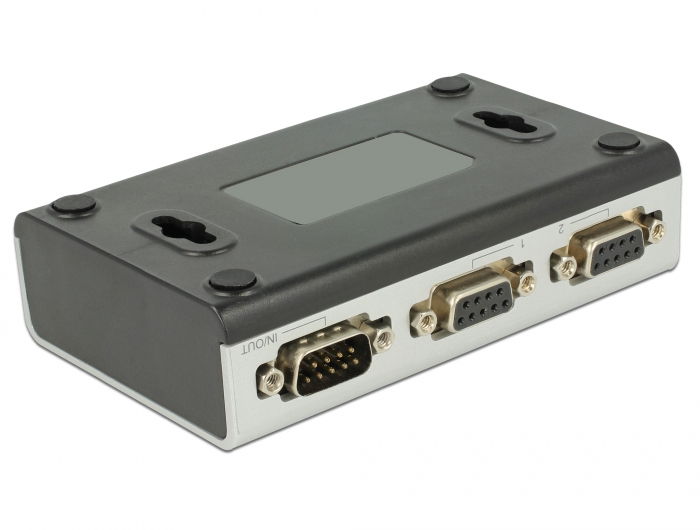

Connector 1
1 x serial RS-232/422/485 DB9 male
Connector 2
1 x Serial RS-232/422/485 DB9 Female
Connector 3
1 x Serial RS-232/422/485 DB9 Female
Technical characteristics
Storage temperature
-10 °C ~ 70 °C
Operating temperature
0 °C ~ 50 °C
Humidity
5 ~ 90 %
Physical characteristics
Housing material
Plastic
Length
112 mm
Width
71 mm
Height
30 mm
Switch
On / Off
