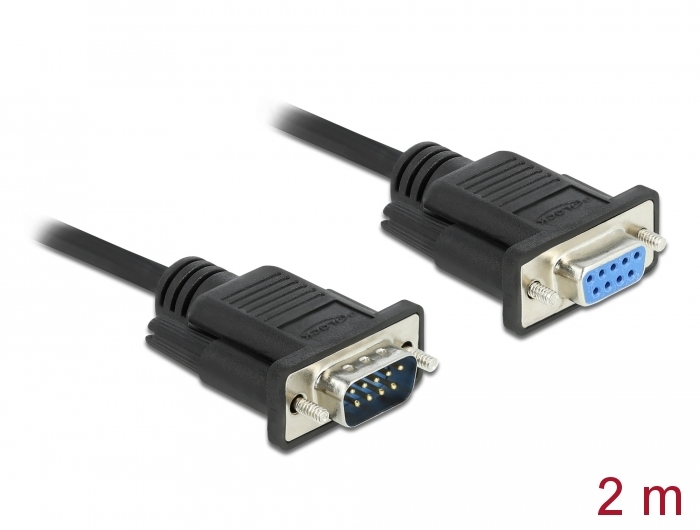

This serial cable by Delock is suitable as an extension cable or connection cable for modem, printer, measuring instruments, converters, RS232 hubs, patch panels etc. The cable provides the possibility of connecting adjacent systems and devices.
Mini D-Sub9 connector
These cables fit on any RS-232 port, as the mini D-Sub9 connectors (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections can be used directly adjacent to each other.
Technical details
Connectors:
1 x serial D-Sub9 male with screws >
1 x serial D-Sub9 female with screws
Cable gauge: 28 AWG
Pin assignment: 1:1
Colour: black
Insulator: PVC
Screw type: #4-40 UNC
Cable diameter: ca. 5 mm
Cable length incl. connectors: ca. 2 m
System requirements
A free D-Sub9 female
A free D-Sub9 male port
Package content
Cable
Specification• RS-232 (EIA / TIA)
Style• Connection- / Extensioncable
Interface
Connector 1• 1 x serial Sub-D 9 male with screws
Connector 2• 1 x serial Sub-D 9 female with screws
Technical characteristics
Data transfer rate• up to 921.6 Kbps
Signal transmission• TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Physical characteristics
Cable type• AWM Style 2464 28 AWG 80 °C 300 V VW-1
Cable length incl. connector• 2 m
Pin finishing• gold-plated
Conductor material• Copper tinned
Conductor gauge• 28 AWG
Screw type• #4-40 UNC
Shielding• Aluminum foil
Colour• black
Cable jacket material• PVC
Safety of Flammability• VW-1
