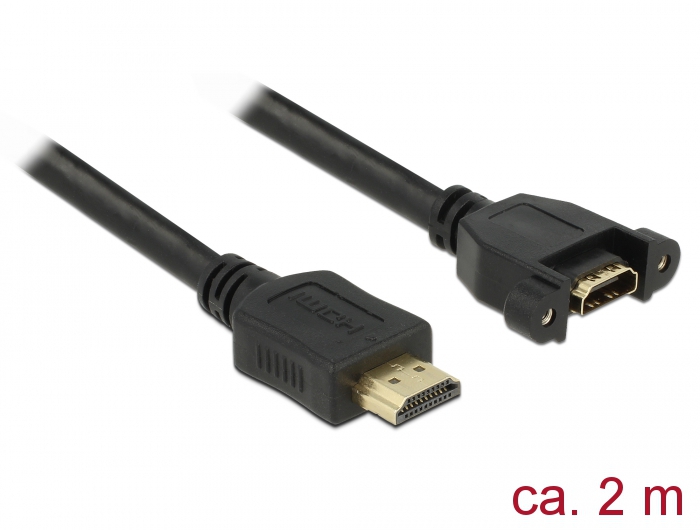

This cable by Delock can be used to extend an HDMI connection and to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a HDMI connector in an easily accessible position.
Specification
• Connectors:
1 x HDMI-A 19 pin male >
1 x HDMI-A 19 pin female panel-mount
• High Speed HDMI with Ethernet (HEC) specification
• Screw type: #4-40 UNC
• Mounting hole: ca. 15 x 6 mm, screw hole pitch ca. 30 mm
• Cable gauge: 28 AWG
• Cable diameter: ca. 7.3 mm
• Gold-plated connectors
• Transfer of audio and video signals
• Data transfer rate up to 10.2 Gb/s
• Resolution up to 3840 x 2160 @ 30 Hz
(depending on the system and the connected hardware)
• 3D support up to 1080p in two video streams with each 60 pictures per second
• Supports Dolby® TrueHD and DTS-HD Master Audio™
• Colour: black
• Length incl. connectors: ca. 2.0 m
System requirements
• A free HDMI interface
Package content
• HDMI panel-mount cable
• 2 screws
Package
• Poly bag
