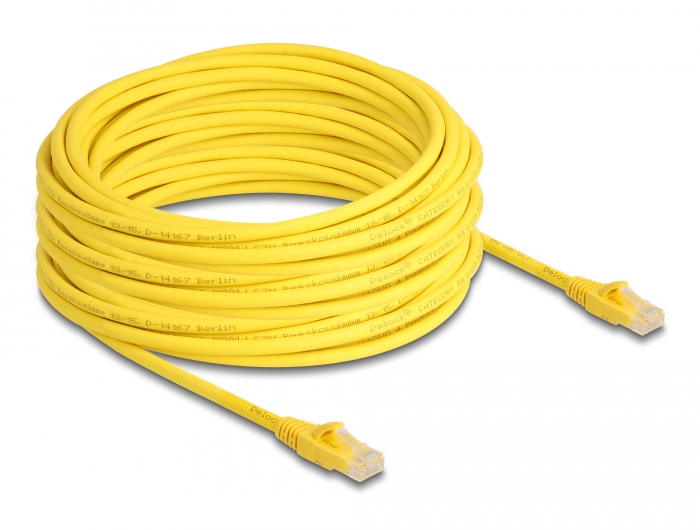

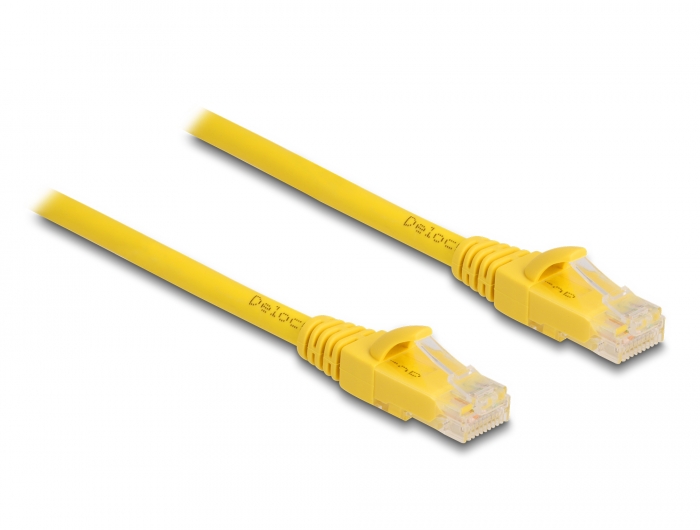

This network cable by Delock can be used to connect different networking devices, e.g. a NIC to a switch or a patch panel.
Fast Tracing
The Fast Tracing function enables the cable to be identified quickly and easily. To do this, a flashlight, for example, is pointed head-on at one of the two connectors, the light is then transmitted via an additional fiber in the cable and the connector at the other end of the cable lights up. This way, cables and connections can be clearly and quickly traced and found in the office, in the industry or in data centers.
Technical details
Connectors:
1 x RJ45 plug
1 x RJ45 plug
1:1 connected
Cat.6A specification
Unshielded (U/UTP)
Copper cable
LS0H (halogen-free)
Cable gauge: 24 AWG
Cable diameter: ca. 6.1 mm
Cable jacket material: PVC
Colour: yellow
Length incl. connectors: ca. 15 m
System requirements
A free RJ45 jack
Package content
Patch cable
Specification• Cat. 6A
Interface
Connector 1• 1 x RJ45 male
Connector 2• 1 x RJ45 male
Physical characteristics
Conductor material• copper
Conductor gauge• 24 AWG
Shielding• U/UTP
Length• 15 m
Colour• yellow
Cable jacket material• PVC
