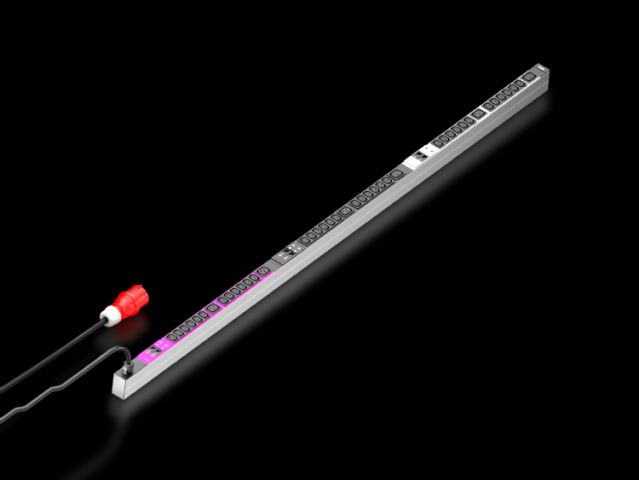

Toitesiin 36xC13+6xC19, 32A 3P, 1895 mm

High-end IT rack power distribution: Robust PDU with compact basic power distribution for the IT environment.

Description: Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible.
Benefits: For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools Colour coding of phases and fuse circuits (L1=pink, L2=black, L3=white) Tool-free divider kit for VX IT
Material: Sheet steel
Colour: Extruded aluminium section, anodised, Slots: Plastic
Protection category IP to IEC 60 529: IP 20
Directives: EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
Supply includes: Connector lock for IEC C14 and C20 connectors
Sockets: 36 x C 13, 6 x C 19
To fit: Enclosure type: Enclosure frame, Enclosure type: 482.6 mm (19") mounting angles, Height: ≥ 2,000 mm, Height: ≥ 2,000 mm
Dimensions: Width: 44 mm, Depth: 70 mm, Length: 1,895 mm
Rated operating voltage: 400 V (AC)
Length of connection cable: 3m
Ambient conditions: Operating temperature: +5 °C...+50 °C, Storage temperature: -20 °C...+70 °C, Ambient humidity (non-condensing): 10 % - 95 %
Rated current (max.): 32 A
Output: 22 kW
Packs of: 1 pc(s)
Weight/pack: 6.5 kg
EAN: 4028177947573
Product description: PDU basic 32A/3P CEE 36xC13+6xC19, DK PDU basic, Compact basic power distributor, WHD: 44x1895x70 mm, IEC 60 320: 36 x C13, 6 x C19

472,13 € (ilma km-ta)

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: 7979141
Tootekood: EE-100-187-666

Weight

6.5 kg
