Tööriistavaba kaabelühendus CAT 6A, STP varjestatud
IDC pistikute jaoks (tööriistadeta)

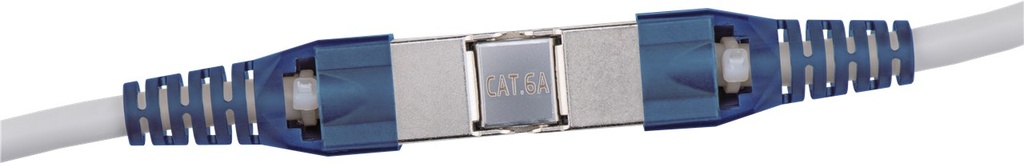

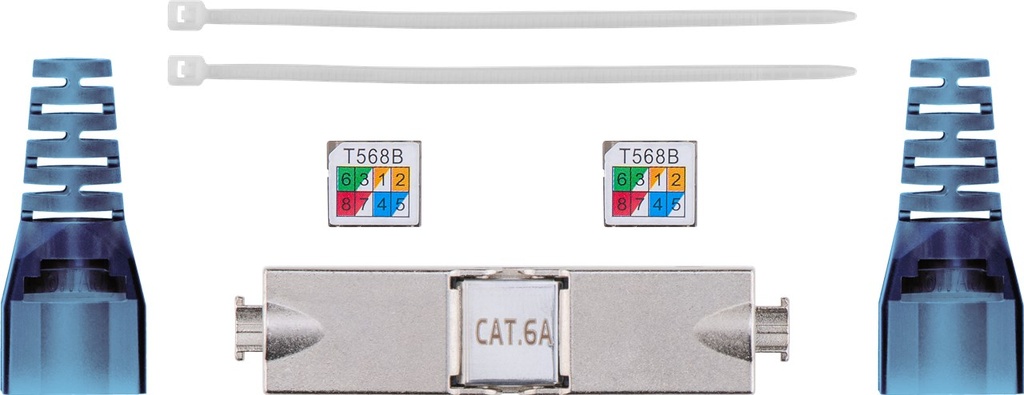

This cable connector is designed for eight-wire connection, extension, repair or rerouting of Cat 6 or 6A data/LAN cables, and does away with the need for bulky connection boxes. It is incredible easy to assemble – no special tools required – and can be effortlessly extended in cable ducts while only taking up a small amount of space; its dimensions are 18 x 26 x 39 mm (W x H x L). Fully shielded housing made of die-cast zinc, featuring strain relief on both sides.
-
for connecting two network installation cables
-
shield connection and strain relief integrated into housing
-
incredibly easy to assemble – no special tools required
-
easy-to-assemble connection of AWG 24/1 to 22/1 data cables
-
cable diameter (solid wire): 0.5–0.64 mm
-
cable diameter (strand): 0.61–0.76 mm
-
suitable for cable sheath diameters of 5.0–9.7 mm
Connections
-
Connection, type for IDC connectors (toolless)
-
Connection 2, type for IDC connectors (toolless)
Cable
-
Specification CAT 6A
-
Shielding class STP
Signal transmission
General
-
Packaging type Bulk
-
Material zinc die-cast
-
Markings CE
-
Length 65 mm
-
Width 11 mm
-
Height 11 mm
